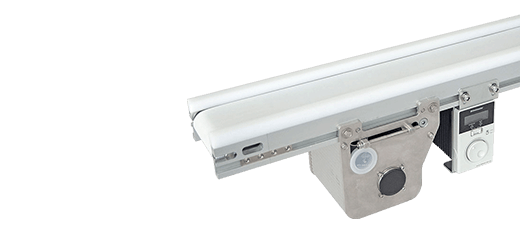

TB30 Single-Belt Conveyor

Förderband TB30 Förderband TB30 Förderband TB30 Förderband TB30

The TB30 conveyor in single-belt configuration is perfectly suited for basic conveying requirements and can serve as the basis for customized conveying solutions. The modular design of the conveyor allows it to be easily modified for changing requirements.

Chas­sis widths 45 – 250 mm
Con­vey­or length up to 10 m
Max­i­mum load up to 100 kg
Speed
DC mo­tor with con­troller up to 80 m/min
AC mo­tor - fixed speeds up to 30 m/min

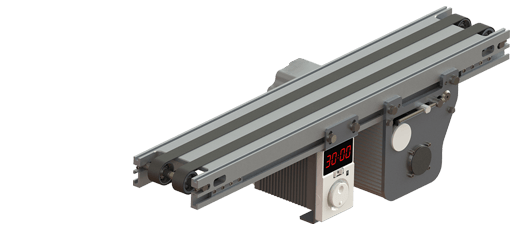

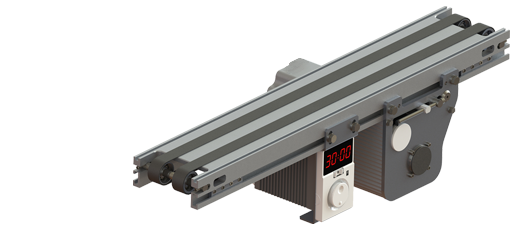

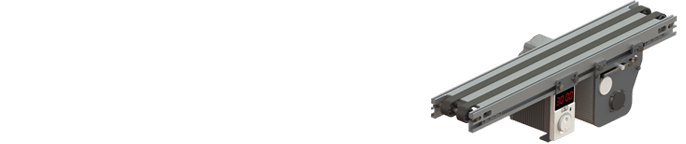

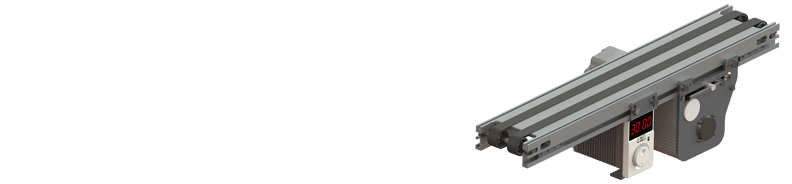

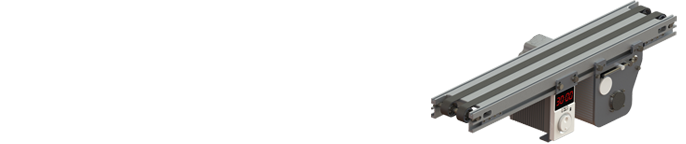

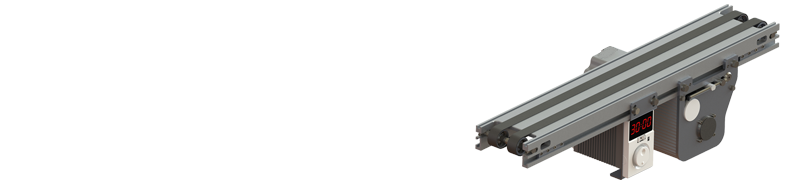

TB30 Dual-Belt Conveyor

doppelgurt686 doppelgurt686 doppelgurt686 doppelgurt686

The TB30 conveyor in dual-belt configuration is ideal when only a small contact area is desired and/or access to the product from below is necessary. The modular conveyor design allows for quick and easy assembly and reconfiguration, and can serve as the basis for customized conveying solutions.

Chas­sis widths 105 - 250 mm
Con­vey­or length up to 10 m
Max­i­mum load up to 79 kg
Speeds
DC mo­tor with con­troller up to 80 m/min
AC mo­tor - fixed speeds up to 30 m/min

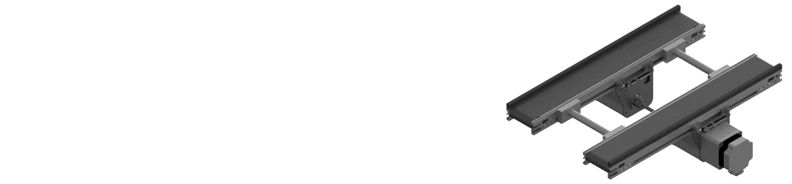

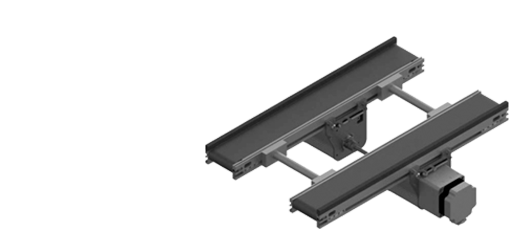

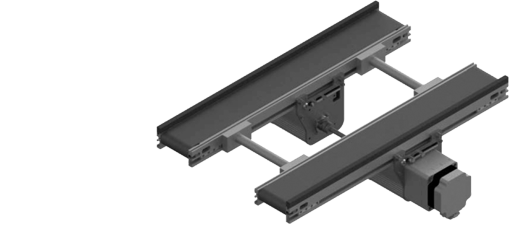

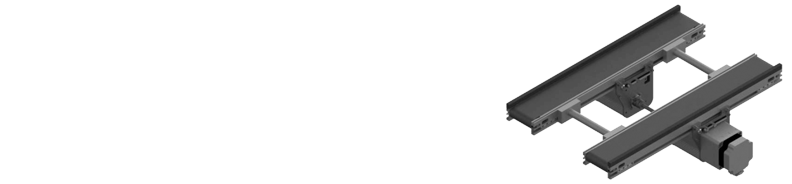

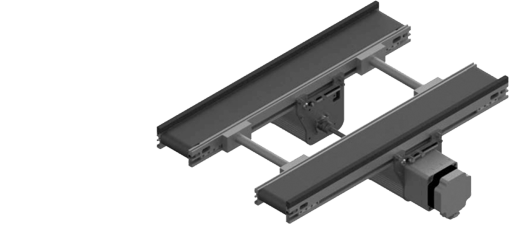

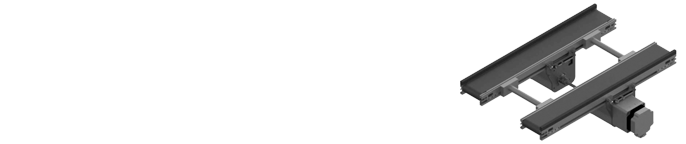

TB30 Tandem Conveyor

686x144_tandem 686x144_tandem 686x144_tandem 686x144_tandem

The TB30 conveyor in tandem configuration is suitable for large, dimensionally stable products. The width and position of the support surface can be adjusted to optimally create the contact area to suit the product. Two conveyor chassis are cost-effectively connected with one coupling and drive, and is powered using only one motor.

Chas­sis widths 60 - 250 mm
To­tal width 200 - 1000 mm
Con­vey­or length up to 10 m
Max­i­mum load up to 100 kg
Speeds
DC mo­tor with con­troller up to 80 m/min
AC mo­tor - fixed speeds up to 30 m/min

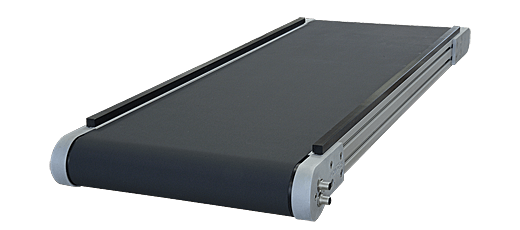

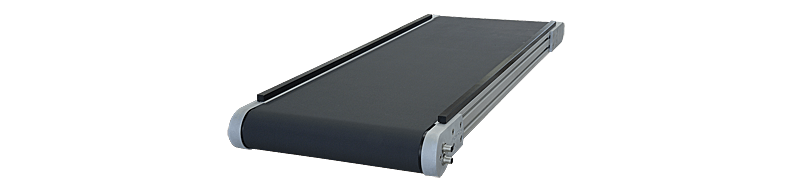

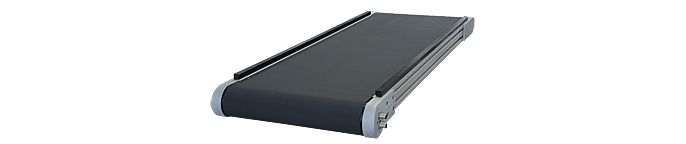

TB40 Conveyor

Förderband TB40 Förderband TB40 Förderband TB40 Förderband TB40

With its modular construction, the TB40 conveyor can be easily configured to meet your production needs. Equipped with a 24 V brushless DC-motor integrated into the drive roller, the TB40 offers a compact design, with capability of loads up to 200 kg. Multiple belt types and accessories are available.

Chas­sis widths 300 – 800 mm
Max. belt load up to 200 kg
Speed 0.25 – 33.5 m/min

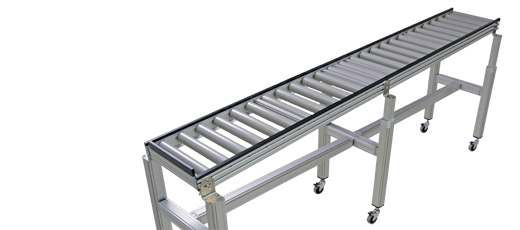

RB40 Roller Conveyor

Rollenbahn RB40 Rollenbahn RB40 Rollenbahn RB40 Rollenbahn RB40

The RB40 gravity roller conveyor transports containers, cartons, skids and other loads with flat, rigid bottom surfaces. Load capacity ranges up to 150 kg/m. The desired slope can be quickly set with the adjustable feet.

Chas­sis widths 300 – 800 mm
Dri­ve no drive (transport by gravity)
Roller spac­ing 100, 125, 150 mm
Max. belt load 150 kg/m

Accessories and Spare Parts

Zub_KTB-Umlenkrolle_686x144px Zub_KTB-Umlenkrolle_686x144px Zub_KTB-Umlenkrolle_686x144px Zub_KTB-Umlenkrolle_686x144px
Montech offers various accessories to complement your conveyor, including lateral guides, floor and table stands. Our accessories are designed to integrate with other Montech modular components, making it easy to configure your conveyor.

While our conveyors are designed for reliability and durability, some components are subject to wear. Our well-stocked shop carries the spare parts you need to keep your conveyor up and running.

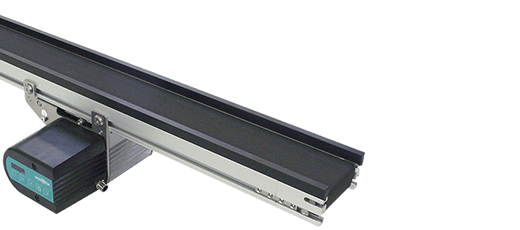

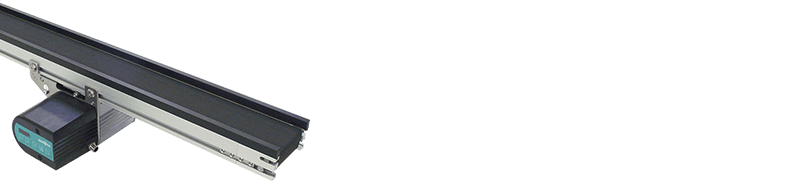

KTB Minidrive Conveyor

Kleintransportband KTB Kleintransportband KTB Kleintransportband KTB Kleintransportband KTB

Montech’s KTB minidrive conveyors are used to carry parts to or from various manufacturing stations, or they can be combined with other units to form complete production lines. Featuring a compact design and integrated control, the conveyor is driven by a variable speed 24 V brushless DC-motor and can transport products up to 20 kg.

Chas­sis widths 45 – 250 mm
Max. belt load up to 20 kg
Vari­able speed 0.4 – 21.0 m/min

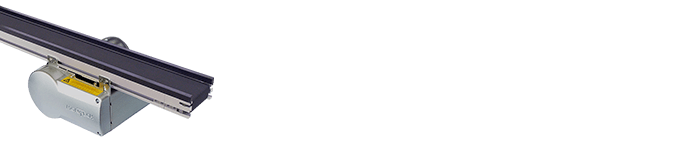

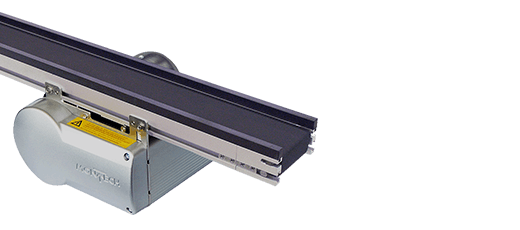

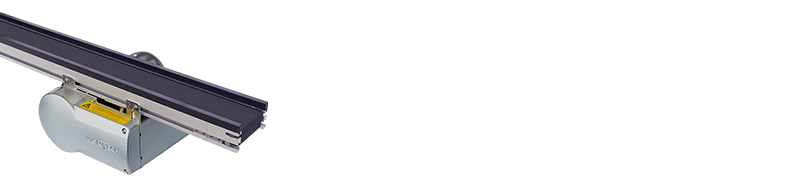

TB Conveyor

Transportband TB Transportband TB Transportband TB Transportband TB

The TB conveyor offers multiple configuration options – as a single-belt or dual-belt conveyor or as a tandem chassis conveyor. The TB conveyor also forms the basis of Montech’s transfer systems. Modular components simplify customization and allow accessories to be easily and quickly mounted onto the chassis.

Chas­sis widths 60 – 250 mm
Max. belt load up to 182 kg
Speed
with­out fre­quen­cy con­vert­er 0.6 – 38.4 m/min
with fre­quen­cy con­vert­er 0.1 – 68.4 m/min

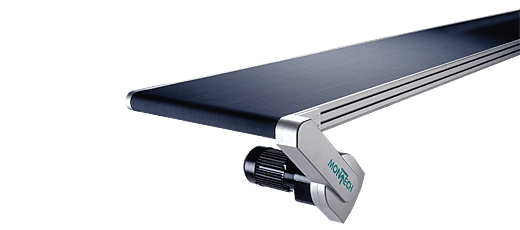

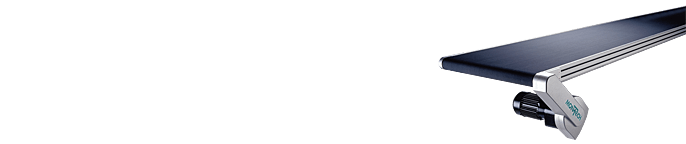

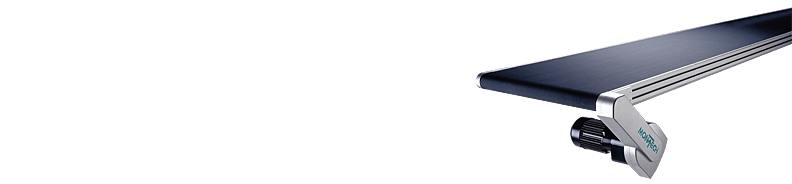

GTB Max Conveyor

Grosstransportband GTB Grosstransportband GTB Grosstransportband GTB Grosstransportband GTB

GTB max conveyors feature standard chassis widths up to 800 mm. Driven by a powerful 230/400 V spur gear motor, GTB max conveyors can move up to 125 kg in conveying mode.

Chas­sis widths 200 – 800 mm
Max. belt load up to 125 kg
Speed
with­out fre­quen­cy con­vert­er 0.5 – 56.6 m/min
with fre­quen­cy con­vert­er 0.13 – 113.3 m/min
