Mobile safety hood

Aluminium Framing

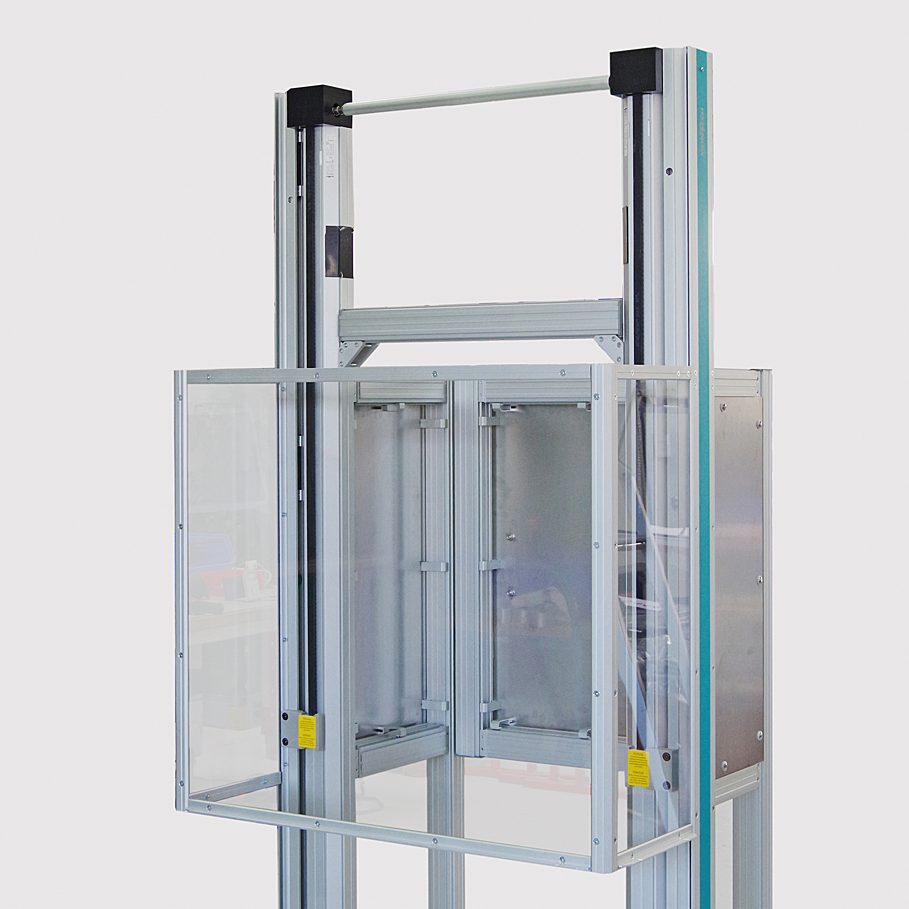

The mobile protection device with integrated safety hood is used with a test system for spindles. Through the open door on the back of the mobile protective device can be moved back and forth to the test station. The safety hood serves as easy quick access during the testing process.

Discover additional versatile solutions here.

Technical Data

Type	Safety hood SH
Dimensions Hood	Length 700 mm, depth 350 mm, height 800 mm
Stroke	1100 mm
Shields (frontside)	Polycarbonate PC transparent, 5 mm
Shields (backside)	Steel sheet stainless, 3 mm
Access (backside)	Swiveling frame with door handle
Substructure	Quick-Set framing system with casters

Downloads

Project sheet
