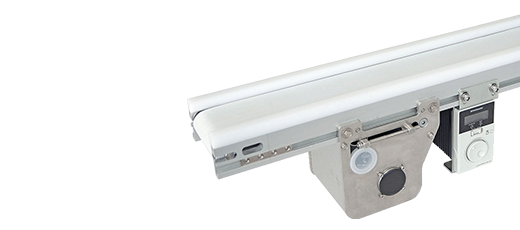

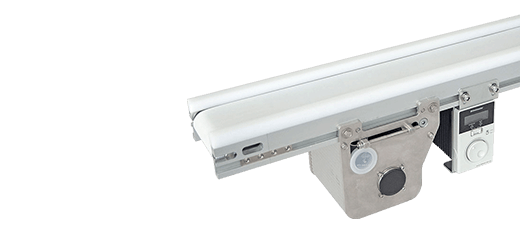

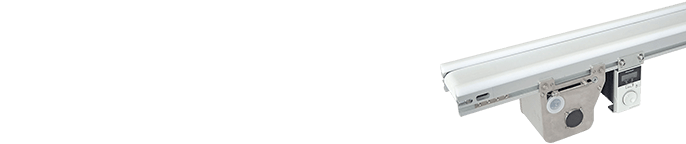

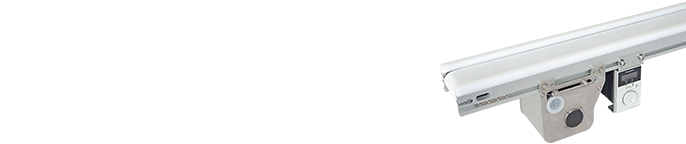

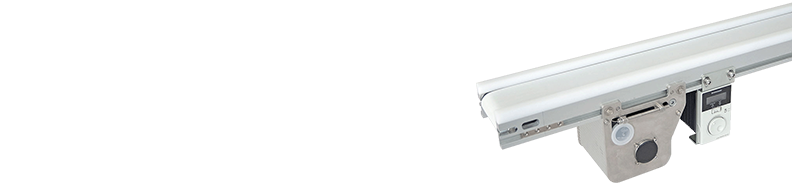

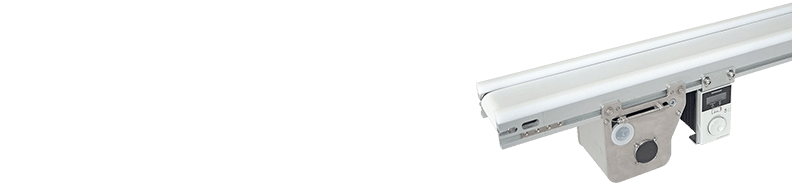

TB30 Single-Belt Conveyor

Conveyor TB30 Conveyor TB30 Conveyor TB30 Conveyor TB30

The TB30 conveyor in single-belt configuration is perfectly suited for basic conveying requirements and can serve as the basis for customized conveying solutions. The modular design of the conveyor allows it to be easily modified for changing requirements.

Chas­sis widths 1.77", 2.36", 3.15", 4.13", 5.51", 7.28", 9.84"
Con­vey­or length up to 32.8 ft
Max­i­mum load up to 220 lb
Speed
DC mo­tor with con­troller up to 262.5 ft/min
AC mo­tor - fixed speeds up to 98.4 ft/min

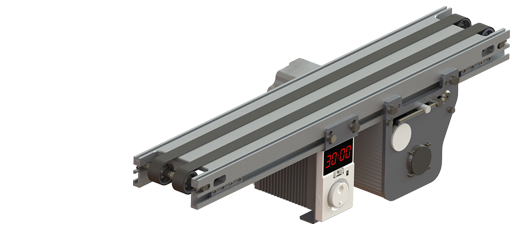

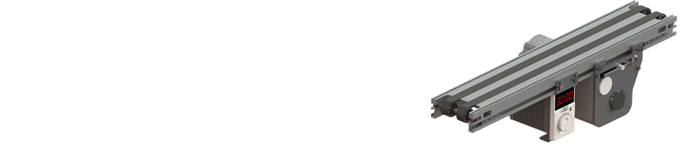

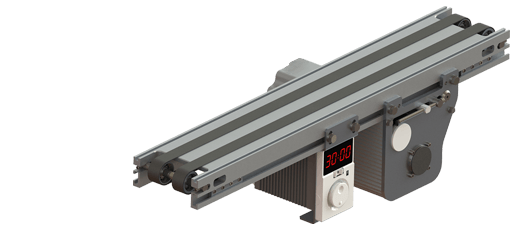

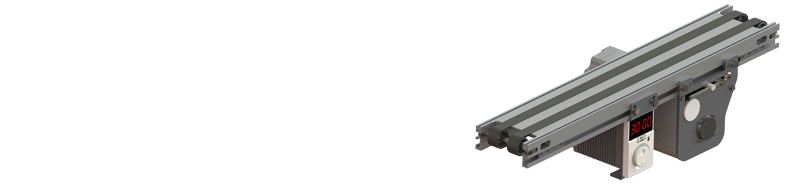

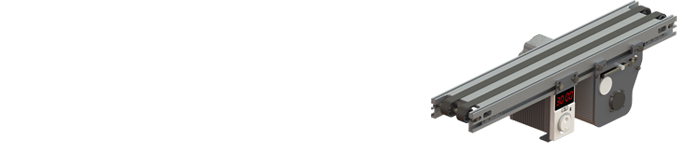

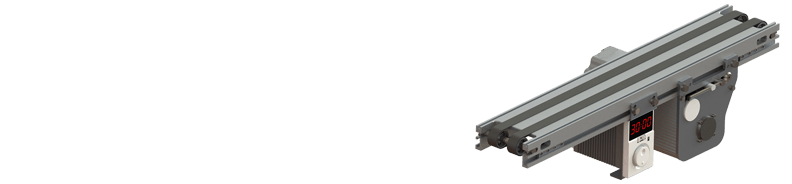

TB30 Dual-Belt Conveyor

doppelgurt686 doppelgurt686 doppelgurt686 doppelgurt686

The TB30 conveyor in dual-belt configuration is ideal when only a small contact area is desired and/or access to the product from below is necessary. The modular conveyor design allows for quick and easy assembly and reconfiguration, and can serve as the basis for customized conveying solutions.

Chas­sis widths 4.13", 5.51", 7.28", 9.84"
Con­vey­or length up to 32.8 ft
Max­i­mum load up to 330 lb
Speeds
DC mo­tor with con­troller up to 262.5 ft/min
AC mo­tor - fixed speeds up to 98.4 ft/min

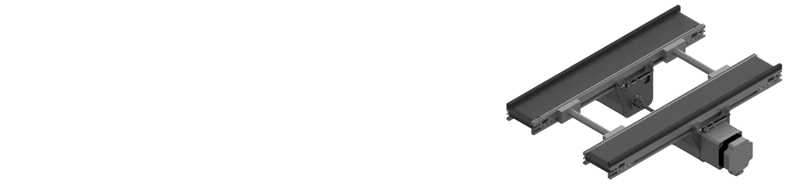

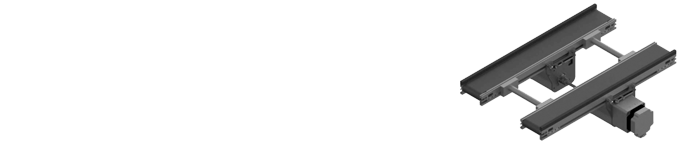

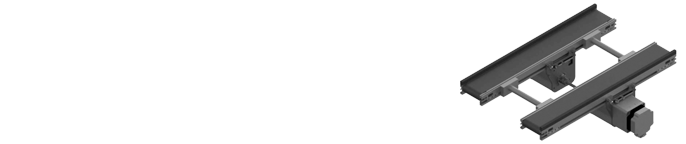

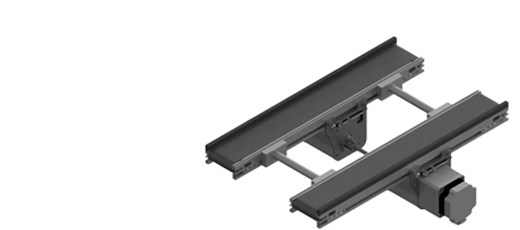

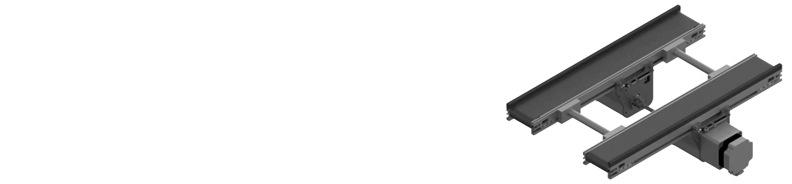

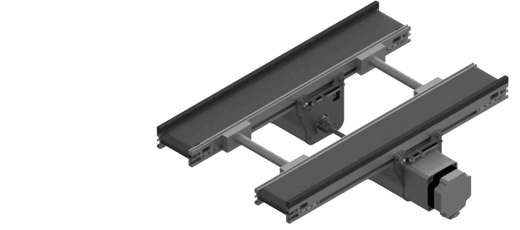

TB30 Tandem Conveyor

686x144_tandem 686x144_tandem 686x144_tandem 686x144_tandem

The TB30 conveyor in tandem configuration is suitable for large, dimensionally stable products. The width and position of the support surface can be adjusted to optimally create the contact area to suit the product. Two conveyor chassis are cost-effectively connected with one coupling and drive, and is powered using only one motor.

Chas­sis widths 2.36", 3.15", 4.13", 5.51", 7.28", 9.84 "
To­tal width 0.65 - 3.28 ft
Con­vey­or length up to 32.8 ft
Max­i­mum load up to 220 lb
Speeds
DC mo­tor with con­troller up to 262.5 ft/min
AC mo­tor - fixed speeds up to 98.4 ft/min

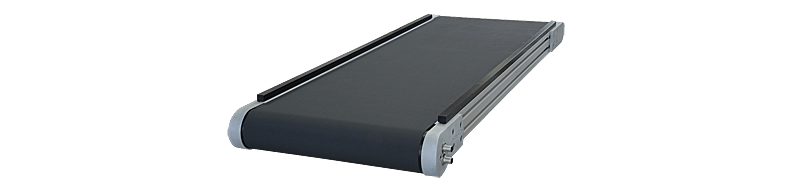

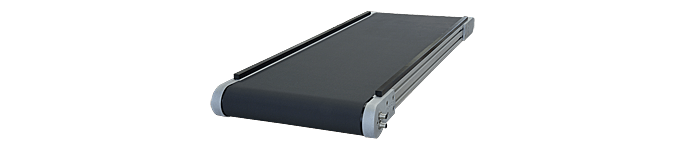

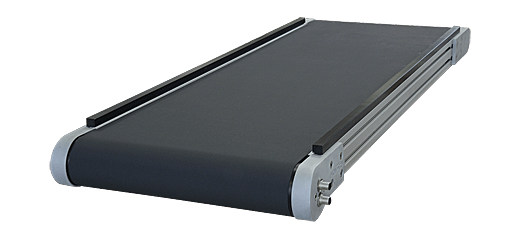

TB40 Conveyor

Conveyor TB40 Conveyor TB40 Conveyor TB40 Conveyor TB40

With its modular construction, the TB40 conveyor can be easily configured to meet your production needs. Equipped with a 24 V brushless DC-motor integrated into the drive roller, the TB40 offers a compact design, with capability of loads up to 200 kg (440 lb). Multiple belt types and accessories are available.

Chas­sis widths 11.8 – 31.5 in
Max. belt load up to 440 lb
Speed 0.8 – 110 ft/min

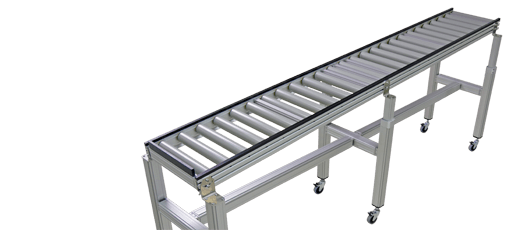

RB40 Roller Conveyor

Roller Conveyor RB40 Roller Conveyor RB40 Roller Conveyor RB40 Roller Conveyor RB40

The RB40 gravity roller conveyor transports containers, cartons, skids and other loads with flat, rigid bottom surfaces. Load capacity ranges up to 150 kg/m (101 lb/ft). The desired slope can be quickly set with the adjustable feet.

Chas­sis widths 11.8 – 31.5 in
Dri­ve no drive (transport by gravity)
Roller spac­ing 3.9, 4.9, 5.9 in
Max. belt load 330 lb/ft

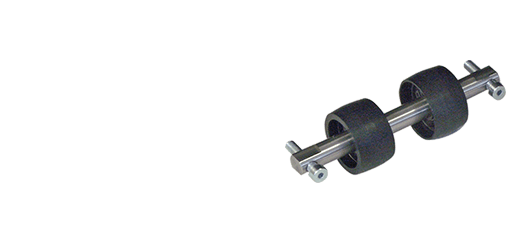

Accessories and Spare Parts

Zub_KTB-Umlenkrolle_686x144px Zub_KTB-Umlenkrolle_686x144px Zub_KTB-Umlenkrolle_686x144px Zub_KTB-Umlenkrolle_686x144px
Montech offers various accessories to complement your conveyor, including lateral guides, floor and table stands. Our accessories are designed to integrate with other Montech modular components, making it easy to configure your conveyor.

While our conveyors are designed for reliability and durability, some components are subject to wear. Our well-stocked shop carries the spare parts you need to keep your conveyor up and running.
