Buffer conveyor and extraction system

Aluminum Framing

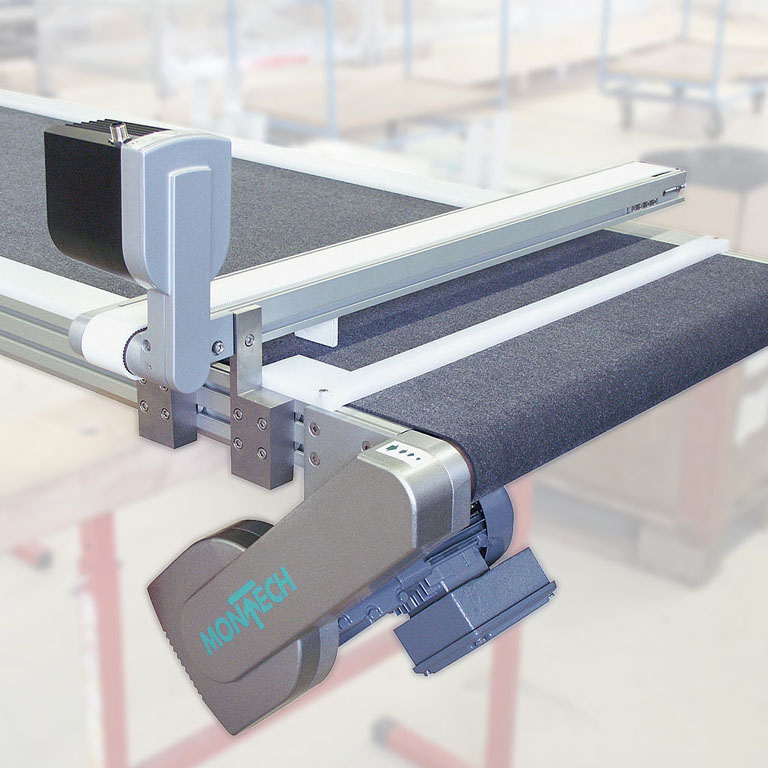

This buffer and extraction system for plastic CD cases consists of two conveyors. A GTB max conveyor transports the product along the assembly line.

A KTB minidrive conveyor with one cleat extracts the product and moves it to the next step in the production process. A special textile belt protects the cases from scratches.

Find more general solutions here.

Technical Data

Type of conveyor below	GTB-700 max conveyor
Drive below	End drive, spur gear motor
Type of conveyor above	KTB-80 minidrive conveyor
Drive above	End drive with DC motor
Max. transport weight	55 lb (25 kg) buffering mode
Speed GTB	19.68 ft/min (6 m/min)
Speed KTB	3.93 to 68.89 ft/min (1.2 to 21.0 m/min) continuously
