Incline belt conveyor with perpendicular discharge

Conveyor System

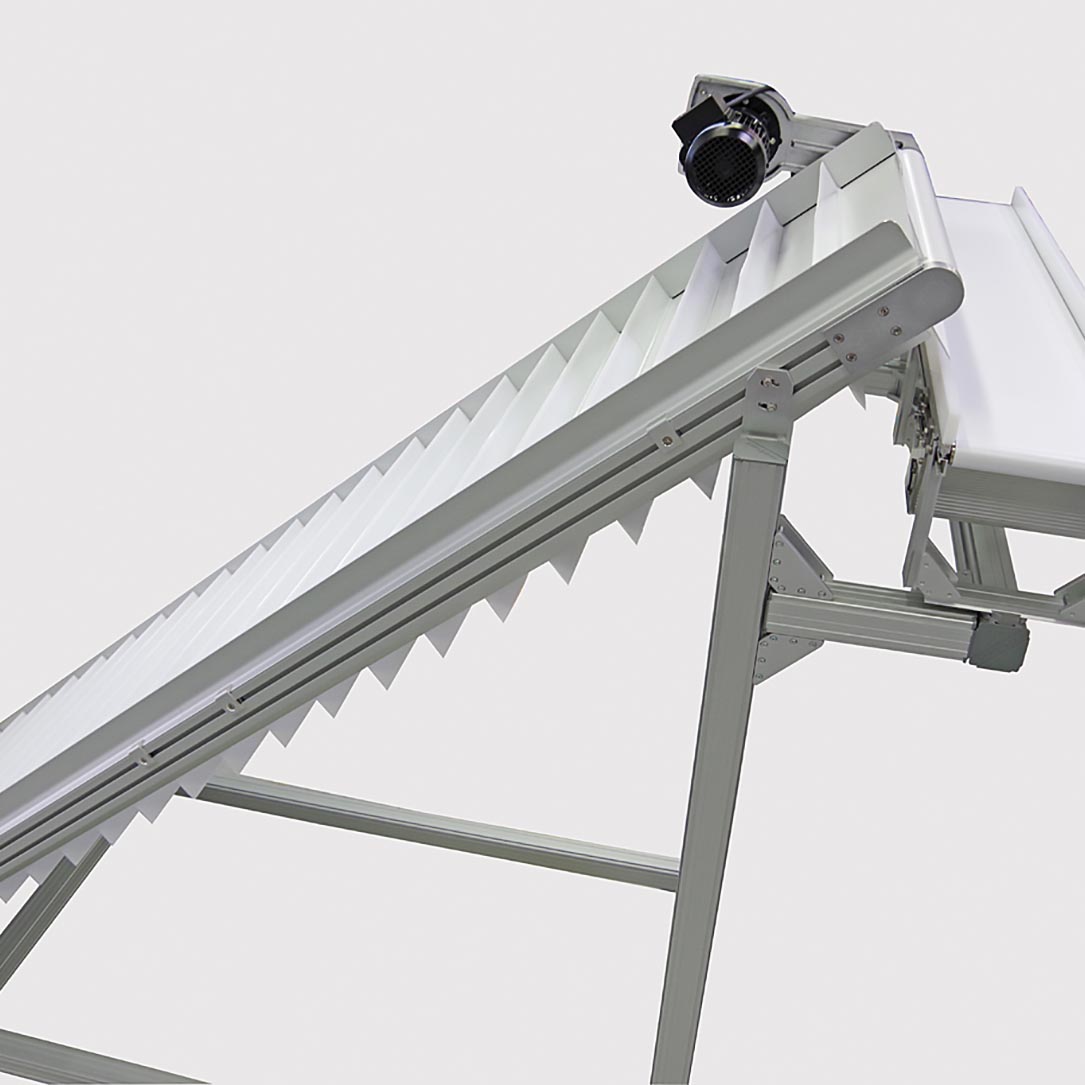

Candy is ejected from production equipment onto a incline conveyor (GTB) featuring a silicone belt with cleats. The GTB elevates the products and discharges onto a perpendicular TB30 conveyor, the sweets are checked with a camera and conveyed either to the left or right for further processing.
Technical Data
Type GTB-800 Max Conveyor
Drive End drive, at the top
Conveyor belt width 31.5 in (800 mm)
Useable width 29 in (737 mm)
Transport length 8.89 ft (2710 mm)
Max. transport weight 220.5 lb (100 kg)
Speed 28.5 ft/min (8.7 m/min)
Inclination 5.90 ft (1800 mm)
Belt type endless F-8EXWT with cleats 7.7 in (118.5 mm) gap
Cleat width 28.7 in (730 mm) centered
Belt type discharge conveyor Conveyor TB30-250
Drive discharge conveyor Three-phase motor center drive
Substructure Quick-Set framing system, mobile
