Mobile safety hood off Quick-Set framing system

Aluminum Framing

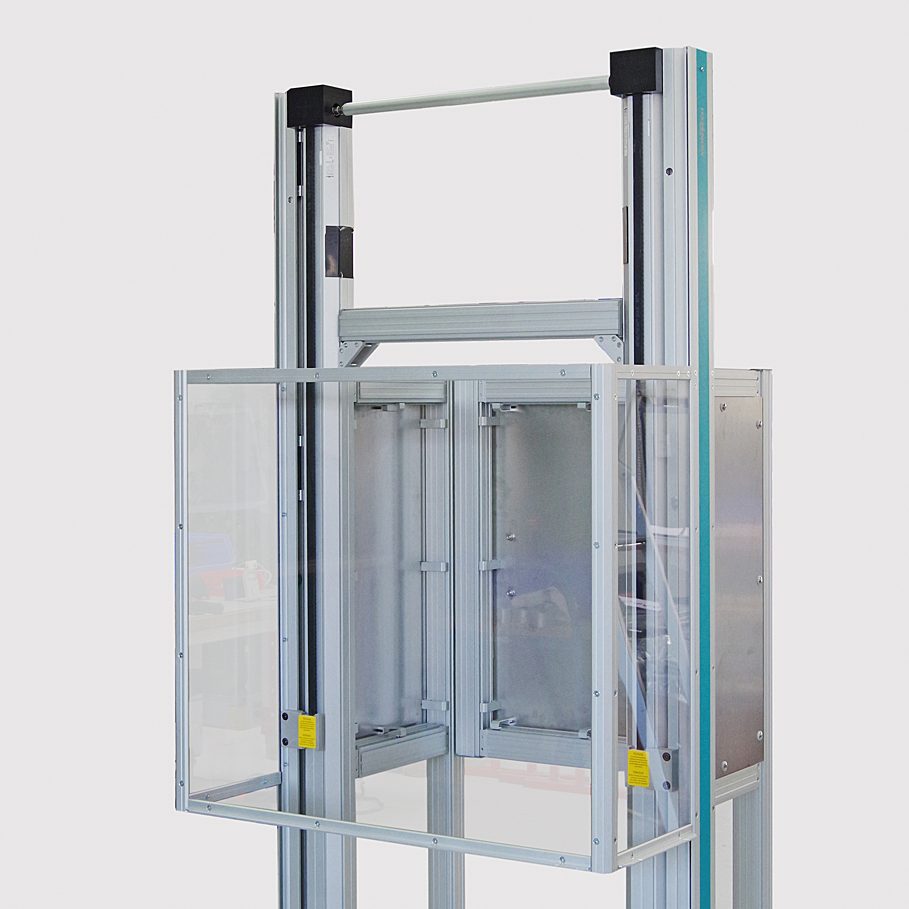

The mobile protection device with integrated safety hood is used in conjunction with a spindle test system. The safety hood provides easy, quick access during the testing process.

Find more general solutions here.

Technical Data

Type	SH Safety hood
Dimensions Hood	Length 27.5 in, depth 13.8 in, height 31.5 in
Dimensions Hood	(Length 700 mm, depth 350 mm, height 800 mm)
Stroke	3.60 ft (1100 mm)
Counterweights	Polycarbonate PC transparent, 0.2 in (5mm)
Shields (backside)	Steel sheet stainless, 0.1 in (3 mm)
Access (backside)	Swiveling frame with door handle
Substructure	Quick-Set framing system with casters
