The challenge
A machine builder faced the task of arranging a sequence of belt conveyor, roller conveyor, and Quick-Set with side guides featuring rollers at the last section of their lengthwise conveyor line, specifically designed for handling 40 kg cartons in the packaging industry.
The solution

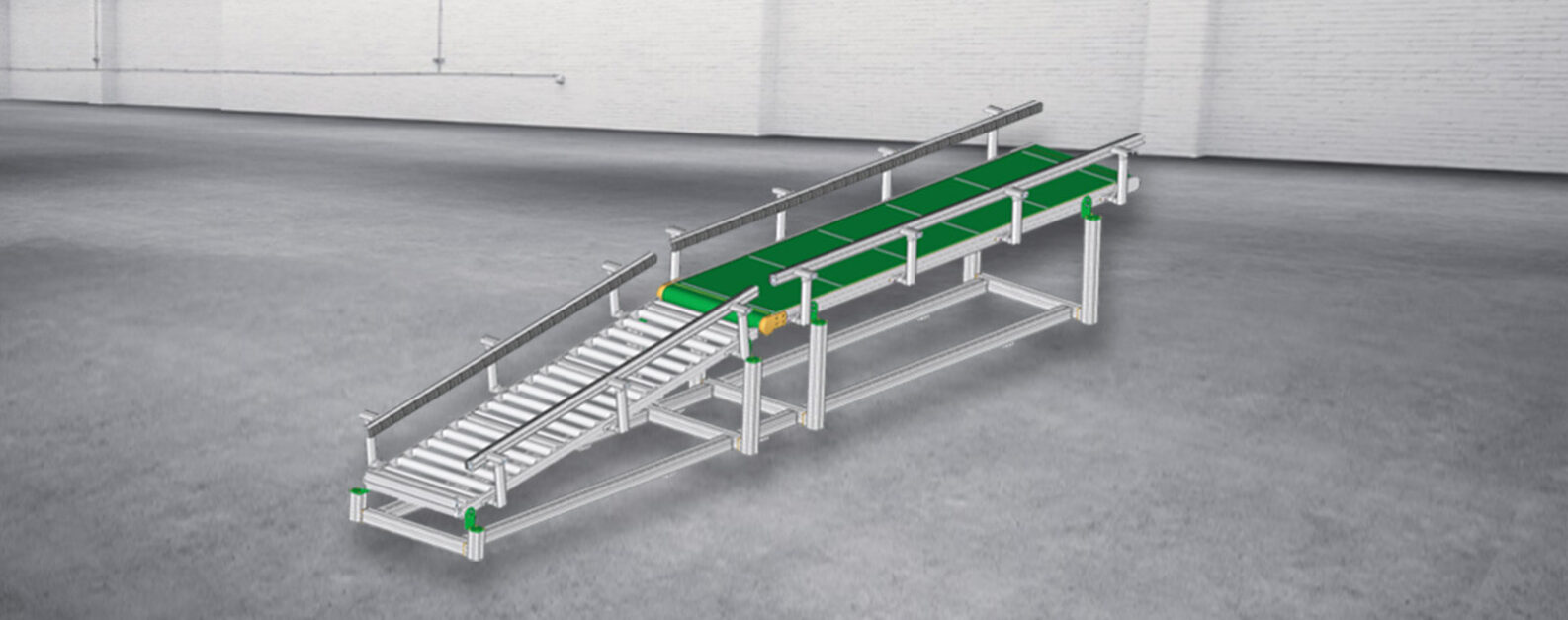

Through a collaborative effort, we successfully fulfilled the customer's requirements. Initially, we gathered inputs to formulate an appropriate solution, incorporating necessary changes until achieving the perfect fit. To address this challenge, we combined a compact TB40 belt conveyor with an RB50 roller conveyor of the same width. For smooth carton transportation, both the TB40 belt conveyor and the RB50 roller conveyor were equipped with side guides featuring roller elements. To accomplish this, we utilized our new profile system, offering comparable functionality to adjustable side guides while ensuring cost-effectiveness. The Quick-Set aluminum framing system served as the substructure, seamlessly connecting the belt conveyor and roller conveyor. Experience the benefits of our versatile belt conveyors, empowering your production line with custom-tailored solutions, optimized work processes, and optimal integration into existing systems. With features like smooth carton gliding ensured by side guides with roller elements and a stable, continuous running surface supported by the Quick-Set aluminum framing system, our solutions offer an attractive and functional design for handling 40 kg cartons in the packaging industry.
Customer benefits for the planning phase
- Custom-tailored solution
- Optimized work process
- Support during project development
- Attractive and functional design
The technical benefits for the customer
- Optimal integration into an existing line with use of the TB40 compact belt conveyor with integrated motor
- Smooth carton gliding ensured by side guides with roller elements
- Flexibility in substructure with the Quick-Set aluminum framing system
- Stable, continuous running surfaces
