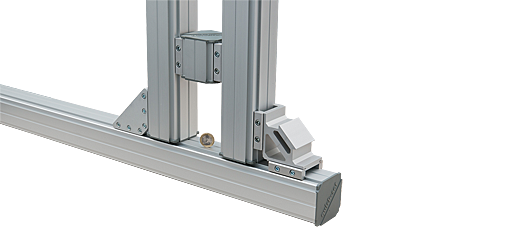

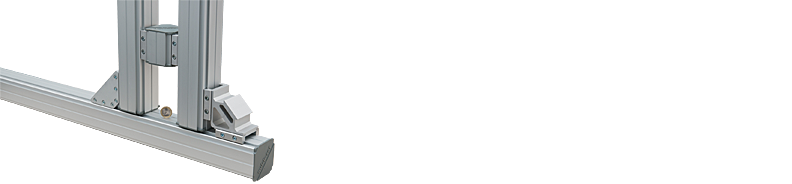

Quick-Set Size 40

Profilsystem Quick-Set Grösse 40 Profilsystem Quick-Set Grösse 40 Profilsystem Quick-Set Grösse 40 Profilsystem Quick-Set Grösse 40

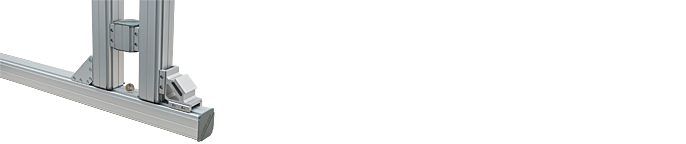

Quick-Set size 40 is the largest and most robust of the Quick-Set framing profile system. The dovetail design can accommodate larger loads than standard T-slot connections. Size 40 is ideal where precise, rigid framework is required.

Tol­er­ance length according to DIN 7168 medium
Dis­tor­tion tol­er­ance 1 mm/m
Straight­ness tol­er­ance 0.5 mm/m
War­ran­ty 3 years

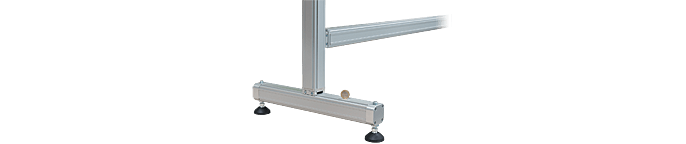

Quick-Set Size 30

Profilsystem Quick-Set Grösse 30 Profilsystem Quick-Set Grösse 30 Profilsystem Quick-Set Grösse 30 Profilsystem Quick-Set Grösse 30

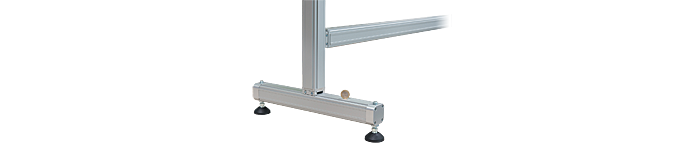

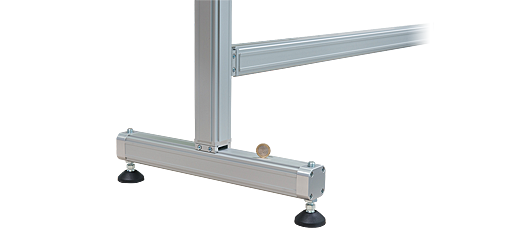

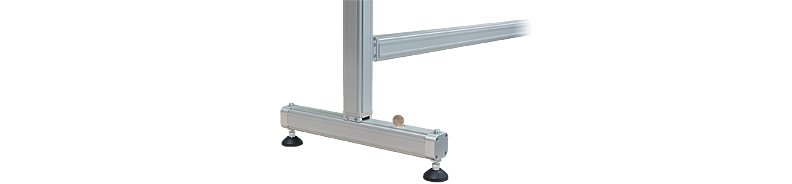

Quick-Set size 30 is most suitable for building chassis, frames, or sub-structures for Montech conveyors and conveyor systems. A wide variety of standard components exist to make even the most challenging structures easy to integrate and reconfigure when required.

Tol­er­ance length according to DIN 7168 medium
Dis­tor­tion tol­er­ance 1 mm/m
Straight­ness tol­er­ance 0.5 mm/m
War­ran­ty 3 years

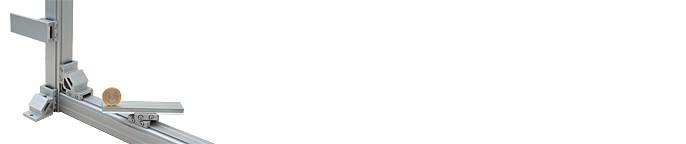

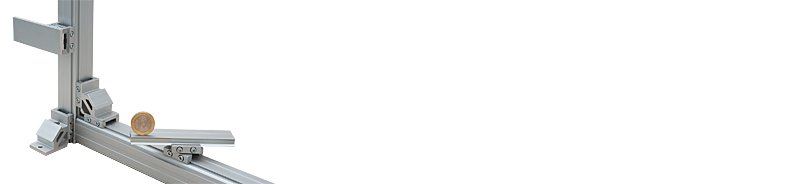

Quick-Set Size 20

Profilsystem Quick-Set Grösse 20 Profilsystem Quick-Set Grösse 20 Profilsystem Quick-Set Grösse 20 Profilsystem Quick-Set Grösse 20

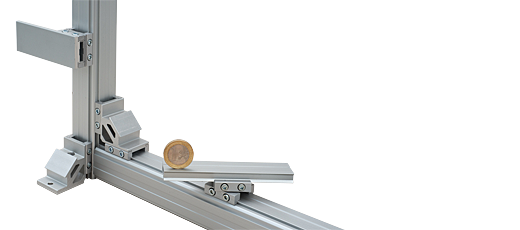

Quick-Set size 20 is ideal for attaching accessories to a conveyor frame or chassis. Monitors, machine vision systems, etc. are easily locked-in-place, or moved due to the dovetail design.

Tol­er­ance length according to DIN 7168 medium
Dis­tor­tion tol­er­ance 0.8 mm/m
Straight­ness tol­er­ance 0.3 mm/m
War­ran­ty 3 years

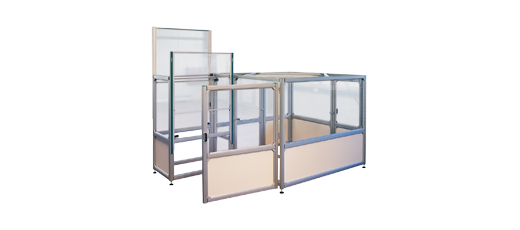

Safety Devices

Schutz_686 Schutz_686 Schutz_686 Schutz_686

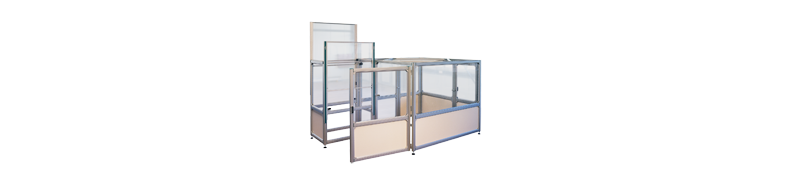

Montech Safety barriers protect employees, yet allow for easy access for equipment maintenance and repair. Based upon the Quick-Set profile framing system, they are available as either a Safety Hood or Safety Wall.

The Safety Hood SH encloses four sides of a hazardous area, plus an optional roof. The Safety Wall SW protects one side. Each system can be easily lifted to gain access to machinery.

Safe­ty De­vices Safety Hood
Safety Wall

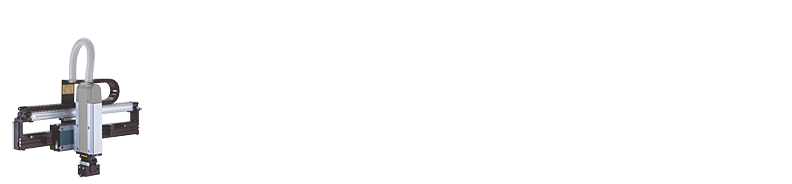

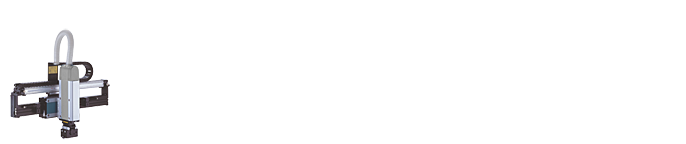

Automation Components

Automation_686 Automation_686 Automation_686 Automation_686

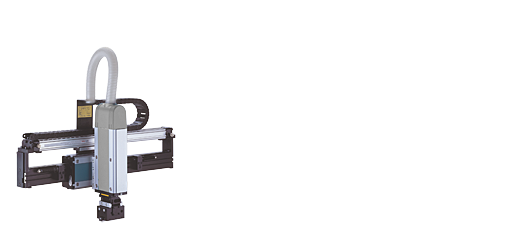

Montech offers a line of electrical and pneumatic automation components for your conveyor system. Complete units, accessories and spare parts are available to purchase in our Shop.

LEP lin­ear units
DAP ro­tary units
Grip­per
HE lift­ing de­vice
Slides
Ser­vo­line spare parts
