Small part transport

Conveyor System

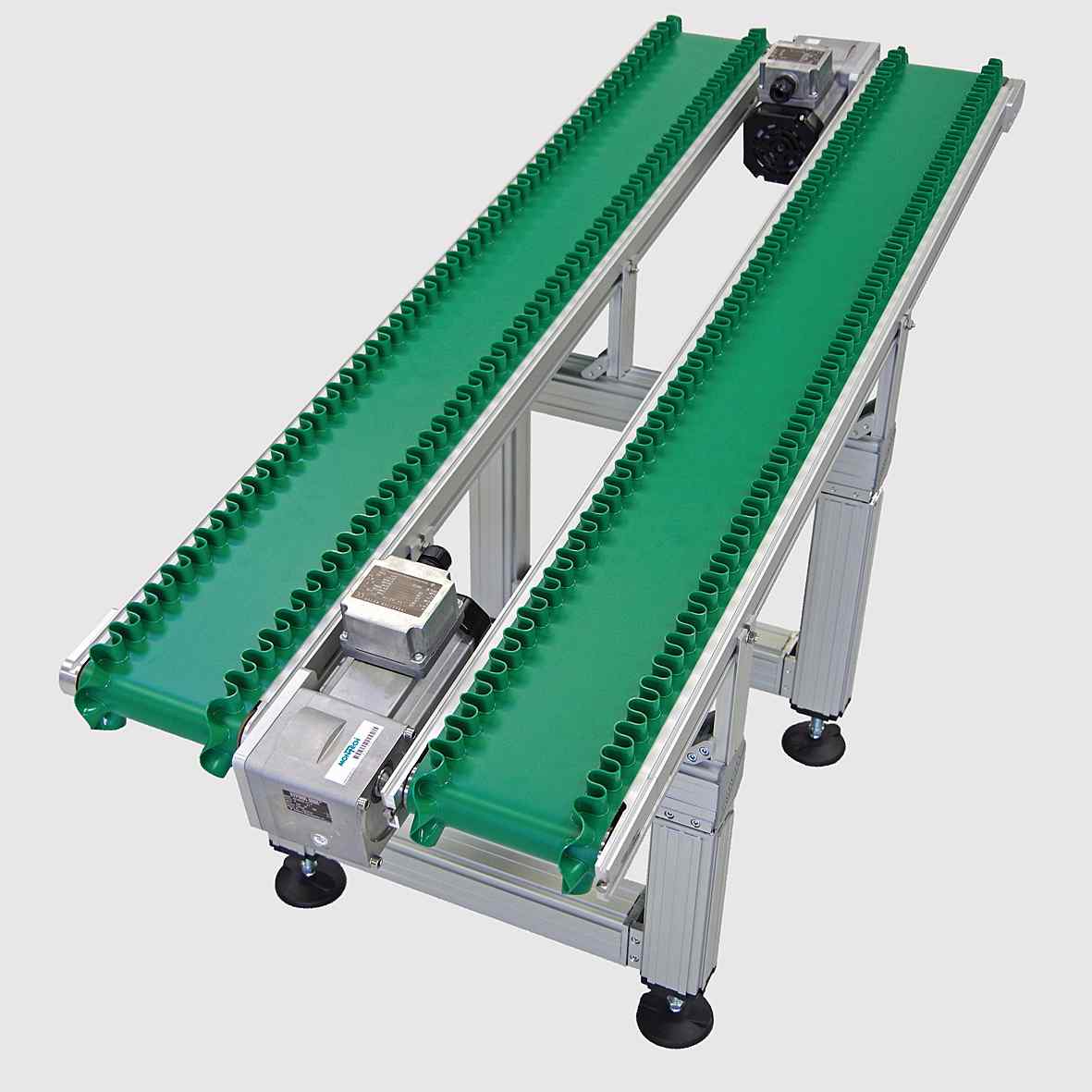

Small electrical parts are transferred from the production machine to the unloading conveyor and transported further into the packaging room. The wave edges of the straps guide the parts safely in the track. The substructure is made up of the Quick-Set profile system of size 40.

Discover additional versatile solutions here.

Technical Data

Type of conveyor	Conveyor TB30-185
Drive	End drive, right, three-phase motor
Width over chassis	185 mm
Usable conveyor width	155 mm
Conveyor length	1300 mm
Max. transport weight	20 kg
Speed	18.6 m/min
Belt type endless	Cleats with corrugated
Height of cleats	20 mm
Substructure	Quick-Set profile framing system
