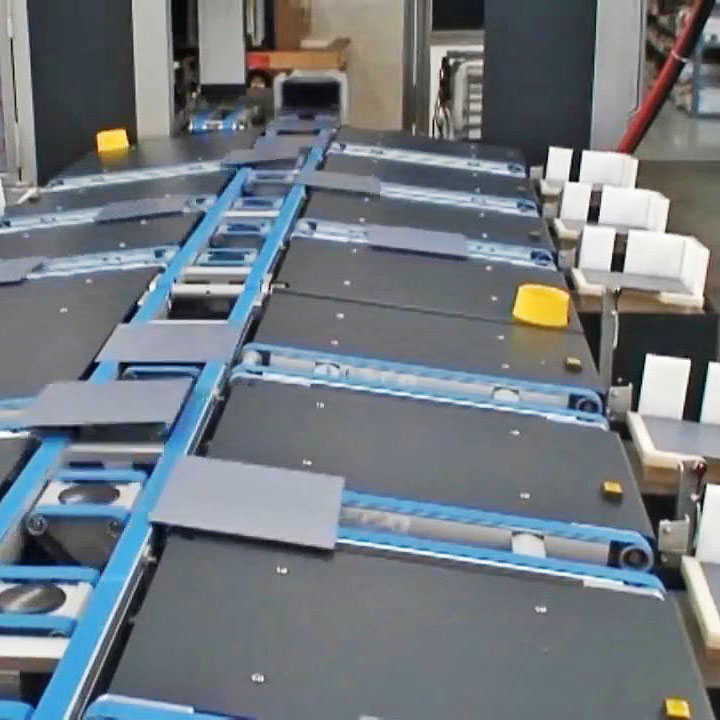

Solar Cell Sorting and Distributing System

Conveyor System

Individual solar cells or wafers are unloaded from a carrier and tested. Based upon its particular characteristics, the wafer is classified and sorted into one of several lanes for further processing.

Discover additional versatile solutions here.

Technical Data

Conveyor center drive	SOLTB-KR-G-LA-W-144 special conveyor
Conveyor type side	SOLTB-ASM-KR-G-LA-W-104 special conveyor
Discharge	SOLTB-ASM 104x144 removal module
Belt width	20 mm
Belt drive torque	0.5 Nm
