Silicon wafer packaging

Conveyor System

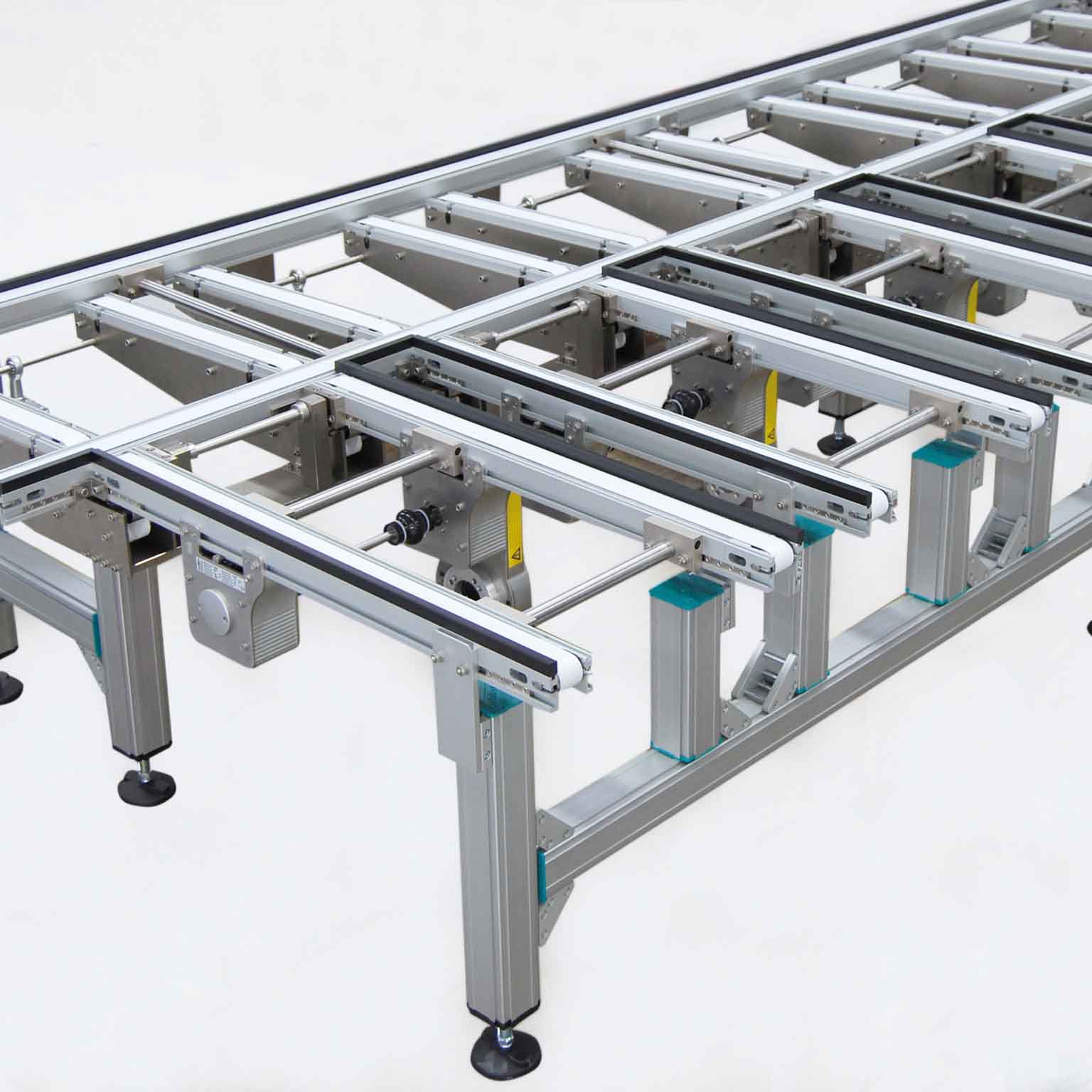

A packaging line integrated utilizing TTBD-60 tandem conveyors loads silicon wafer blanks into transport boxes. The transport boxes are discharged from the longitudinal conveyor via a rocker conveyor onto one of the six transverse belts, and loaded by robots. The load/unload rocker conveyors are actuated via pneumatic cylinder.
Technical Data
Type TTBD-60V Tandem conveyor
Drive Prepared for gear motor vertical
Conveyor belt width 60 mm
Useful conveyor width 566 mm / 366 mm
Total length 6015 mm
Total width 3388 mm
Max. transport weight 100 kg in conveying mode
Speed 11 m/min
Belt type endless FNB-5E
Belt width 30 mm
Substructure Quick-Set framing system
