Conveyor Buffer System with Lateral Displacement

Conveyor System

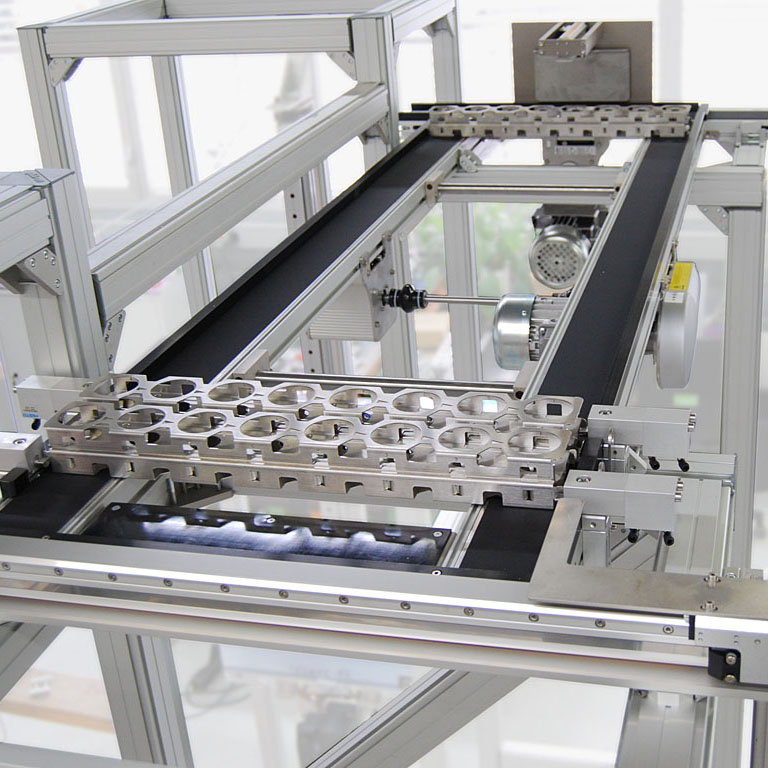

The tandem conveyor buffer system is designed for transporting custom-designed holders for electrical components handling. These holders are buffered to allow sufficient cooling time before being laterally transported to the next workstation.

Find more general solutions here.

Technical Data

Conveyor over transit	TTBD-105 tandem conveyor
Drive transit	Horizontal, spur gear motor
Conveyor for lifts	BTB-105 conveyor
Drive lifts	Center drive with induction motor
Working heights	37.40 in / 8 ft (950 mm / 2450 mm)
Opening passage	3.28 ft (1000 mm) wide, 7.20 ft (2200 mm) high
Vertical height lift	4.92 ft (1500 mm)

Downloads

Project sheet
