Quick-Set Alumininum Framing:
Swift and Sturdy Connections
Introducing Quick-Set, our cutting-edge alumininum framing system that revolutionises the way structures are assembled. With our innovative Quick-Set connection technology, you can swiftly and effortlessly construct sturdy frameworks to meet your specific requirements. Our aluminium framing systems offer you precise and robust solutions for a wide range of applications. Experience the versatility of Quick-Set, our modular aluminium profile system that combines the strength of sturdy connections with the flexibility to create precise frameworks for various applications.

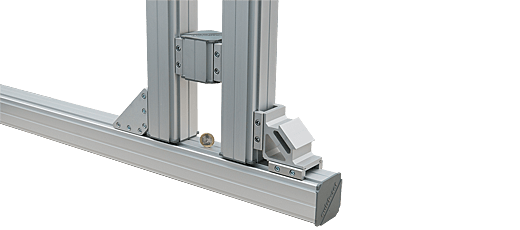

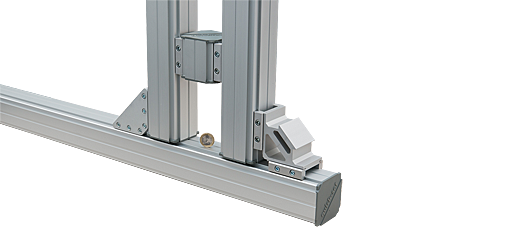

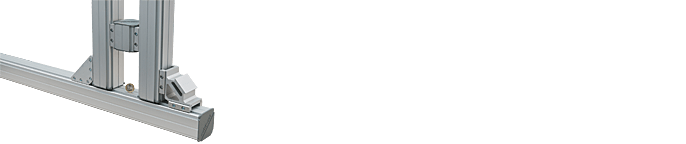

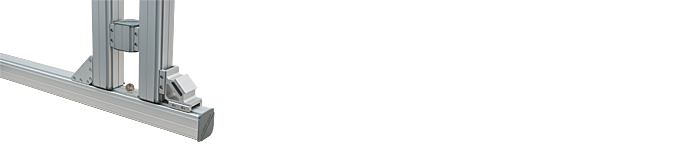

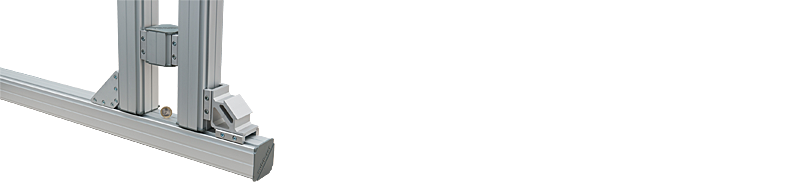

Quick-Set Size 40
Quick-Set size 40 is the largest and most robust of the Quick-Set aluminium profile system. The dovetail design can accommodate larger loads than standard T-slot connections. Size 40 is ideal where precise, rigid framework is required.
| TolÂerÂance length | according to ISO 2768/DIN 7168 medium |
| DisÂtorÂtion tolÂerÂance | 0.012 in/ft |
| StraightÂness tolÂerÂance | 0.006 in/ft |
| WarÂranÂty | 3 years |

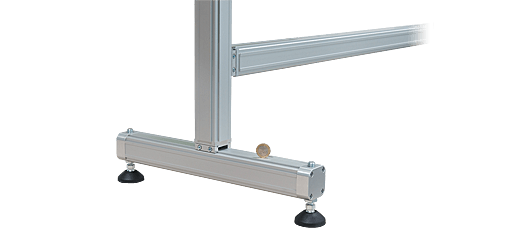

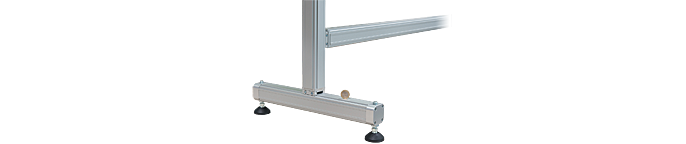

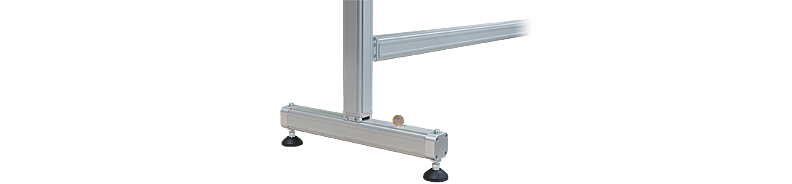

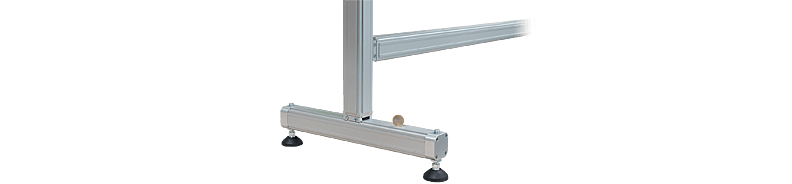

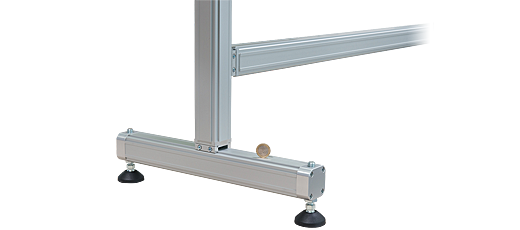

Quick-Set Size 30
Quick-Set size 30 is the most suitable connection system for building chassis, frames, or sub-structures for Montech conveyors and conveyor systems. A wide variety of standard components exist to make even the most challenging structures easy to integrate and reconfigure when required.
| TolÂerÂance length | according to ISO 2768/DIN 7168 medium |
| DisÂtorÂtion tolÂerÂance | 0.012 in/ft |
| StraightÂness tolÂerÂance | 0.006 in/ft |
| WarÂranÂty | 3 years |

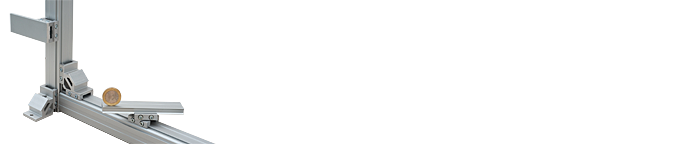

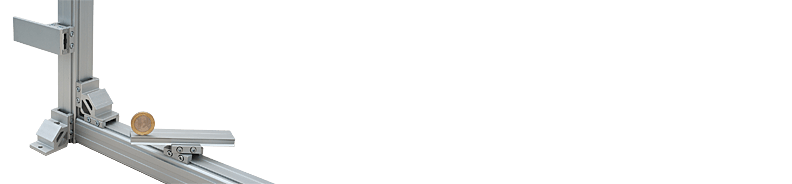

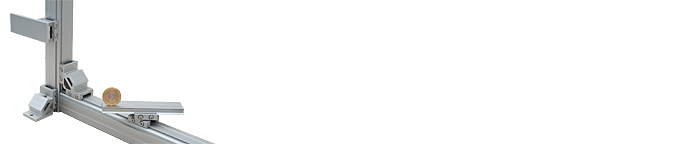

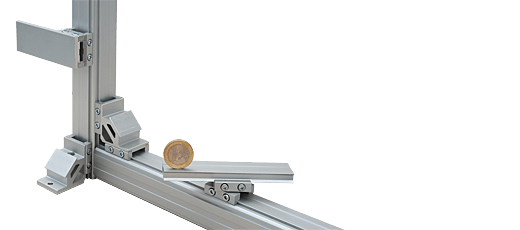

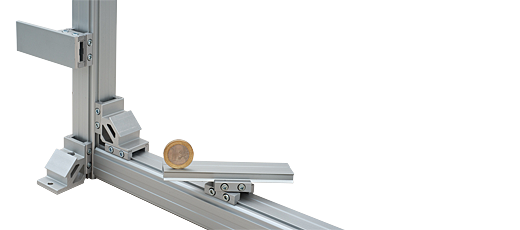

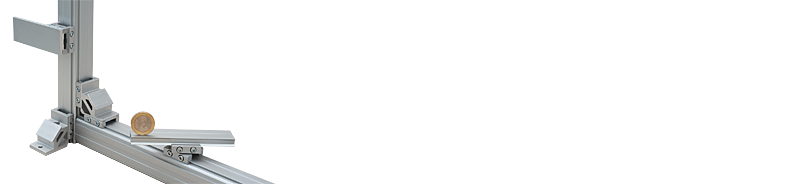

Quick-Set Size 20
Quick-Set size 20 is the ideal mounting system for attaching accessories to a conveyor frame or chassis. Monitors, machine vision systems, etc. are easily locked-in-place, or moved due to the dovetail design.
| TolÂerÂance length | according to DIN 7168 medium |
| DisÂtorÂtion tolÂerÂance | 0.0096 in/ft |
| StraightÂness tolÂerÂance | 0.0036 in/ft |
| WarÂranÂty | 3 years |

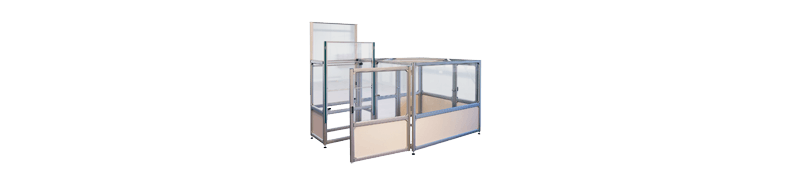

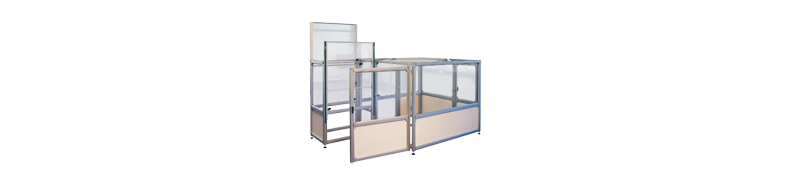

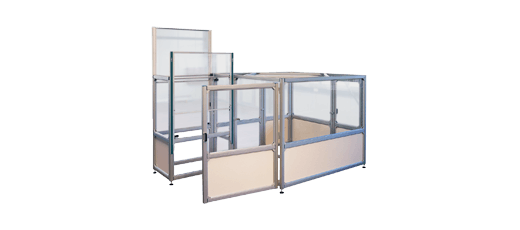

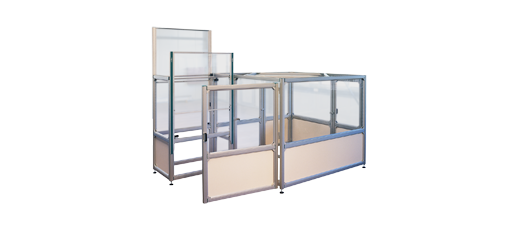

Safety Devices
Montech Safety barriers protect employees, yet allow for easy access for equipment maintenance and repair. Based upon the Quick-Set profile framing system, they are available as either a Safety Hood or Safety Wall.
The Safety Hood SH encloses four sides of a hazardous area, plus an optional roof. The Safety Wall SW protects one side. Each system can be easily lifted to gain access to machinery.
| Safety Devices | Safety Hood |
| Safety Wall |
