Buffer and Extraction System

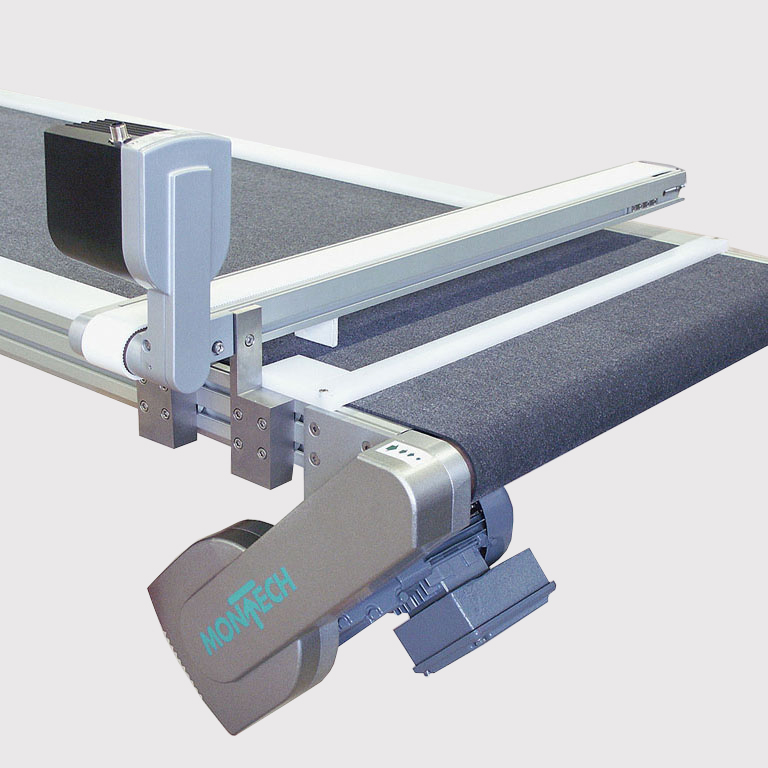

This buffer and extraction system for plastic CD cases consists of two conveyors. A GTB max conveyor transports the product along the assembly line. A KTB minidrive conveyor with one cleat extracts the product and moves it to the next step in the production process. A special textile belt protects the cases from scratches.

Discover additional versatile solutions here.

Technical Data

Type of conveyor below	GTB-700 max conveyor
Drive below	End drive, spur gear motor
Type of conveyor above	KTB-80 minidrive conveyor
Drive above	End drive with DC motor
Max. transport weight	25 kg (buffering mode)
Speed GTB	6 m/min
Speed KTB	1.2 to 21.0 m/min continuously
