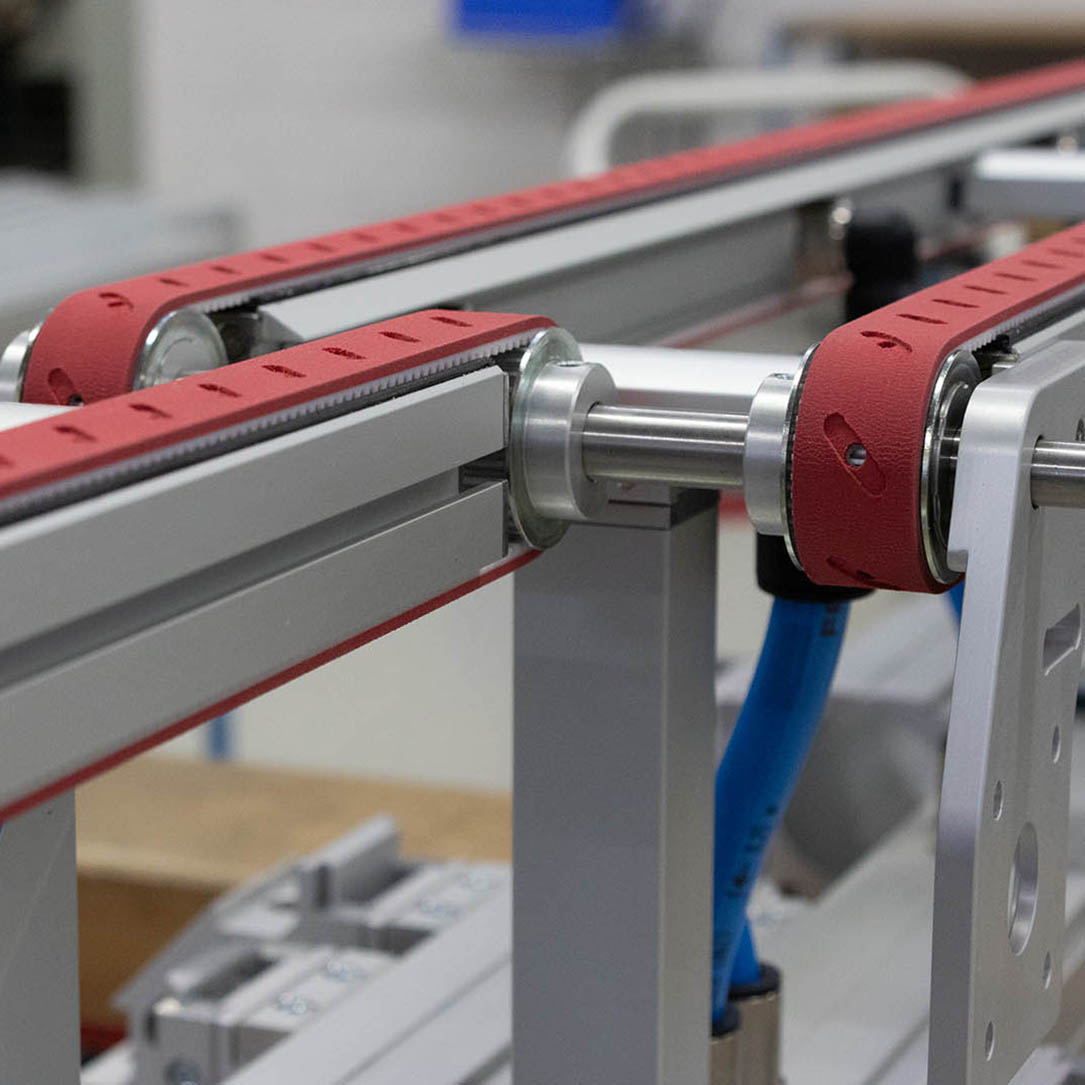

Synchronous vacuum belt conveyors

Conveyor System
Parts are carefully transferred from one vacuum conveyor to a second vacuum conveyor. Synchronicity of the two conveyor belts is an absolute necessity, and is assured by the two belts being driven off one motor and one drive shaft.

The clever use of the Quick-set framing systems allows the vacuum plenums to be cleverly integtated into the supporting structure of the system.
Technical Data
Type SOLTB-V-KR-Z-LA special
Conveyor width 6.22 in (158 mm)
Pneumatic connections 10 pair
Orientation Horizontal
Cleated belts 4 - Width 10.74 in (9 mm)
Distance between rollers 2 x 3.77 ft (2 x 1150 mm)
