Belt conveyor with partial vacuum section

Conveyor System

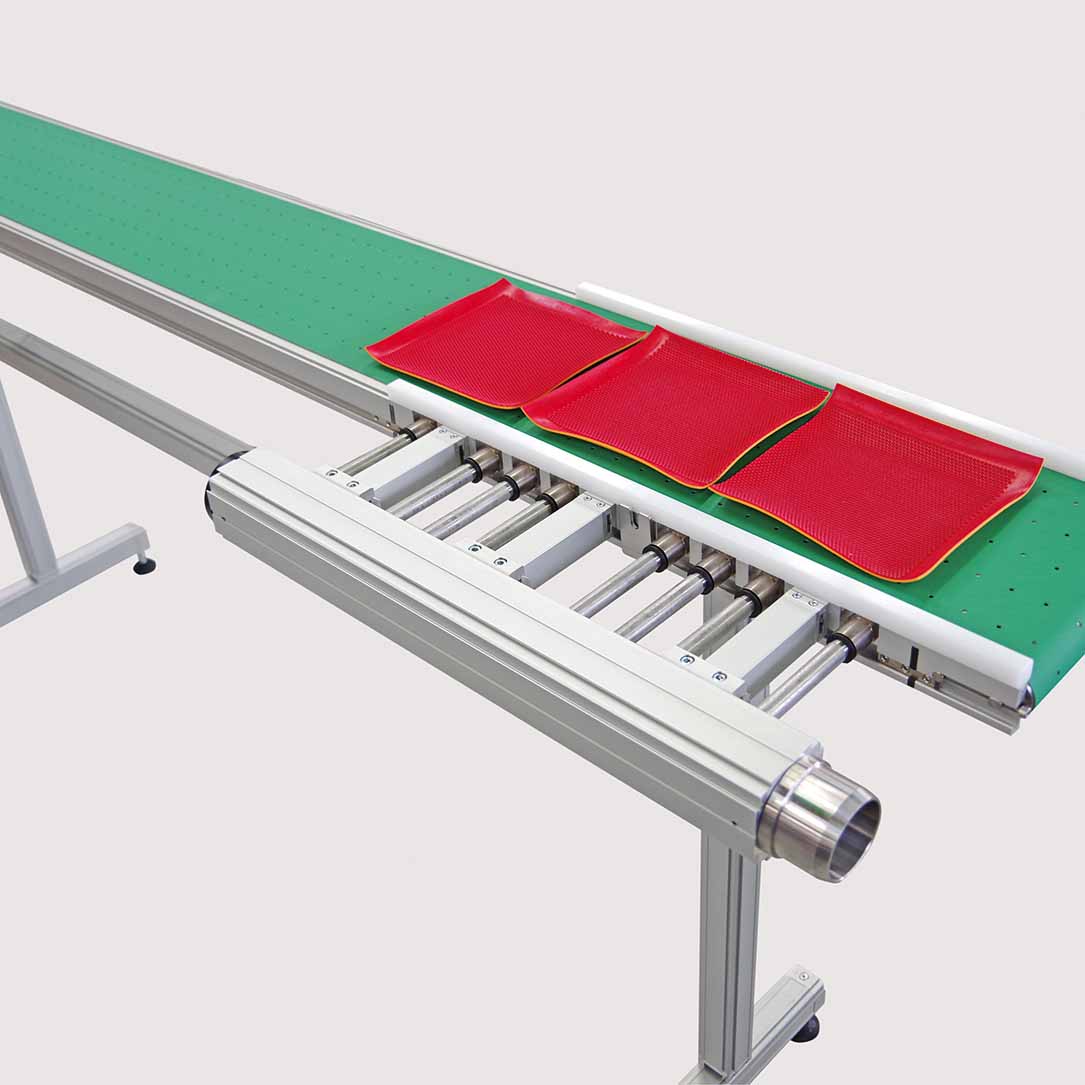

This standard TB30 conveyor has been modified to accommodate a 19.7 in (500 mm) section which is under vacuum. The vacuum creates a smooth surface on the product allowing it to be processed without issue.

The conveyor further serves as a link between two production processes. The substructure is integrated from the versatile Quick-Set framing system.
Technical Data
Type TB30-250 Conveyor with vacuum section
Drive Threephase motor 3x400V, 50Hz
Conveyor belt width 9.8 in (250 mm)
Useful conveyor width V 8.7 in (221 mm)
Max. transport weight 44 lb (20 kg)
Speed 5.9 to 47.9 ft/min (1.8 to 14.6 m/min)
Vacuum area 19.6 in (500 mm)
Belt type endless HAM-5P, perforated 0.1 in (3 mm)
Deflection pulleys Infeed: ø1.5 in (40 mm) / Outlet: ø1.1 in (30 mm)
Substructure Quick-Set double floor stand TB30-250
