Incline belt conveyor with hopper

Conveyor System

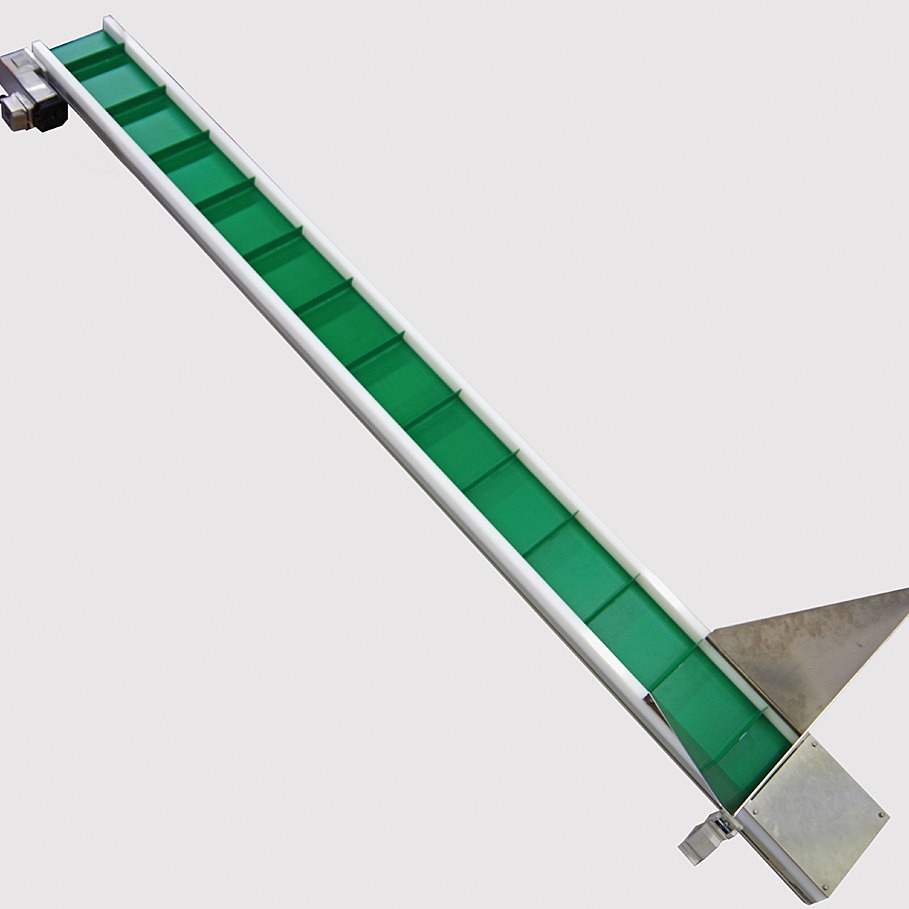

Packed foods are transported from below to a higher level on the inclining conveyor belt for transportation. The large hopper also serves as a buffer for different amounts of products. The substructure is made up of the Quick-Set profile system of size 40.

Find more general solutions here.

Technical Data

Type	TB30-250
Drive	End drive, three-phase motor
Width	9.84 in (250 mm)
Usable conveyor width	7.87 in (200 mm)
Length	9.43 ft (2876 mm)
Max. transport weight	66 lb (30 kg)
Speed	15 ft/min (4.6 m/min)
Inclination	36°
Belt type endless	Belt type endless
Cleat spacing	7.83 in (199 mm)
Lateral guides	1.57 in fixed (40 mm fixed)
Substructure	Quick-Set framing system
