Magnetic Transport System for Metal Parts
Conveyor System

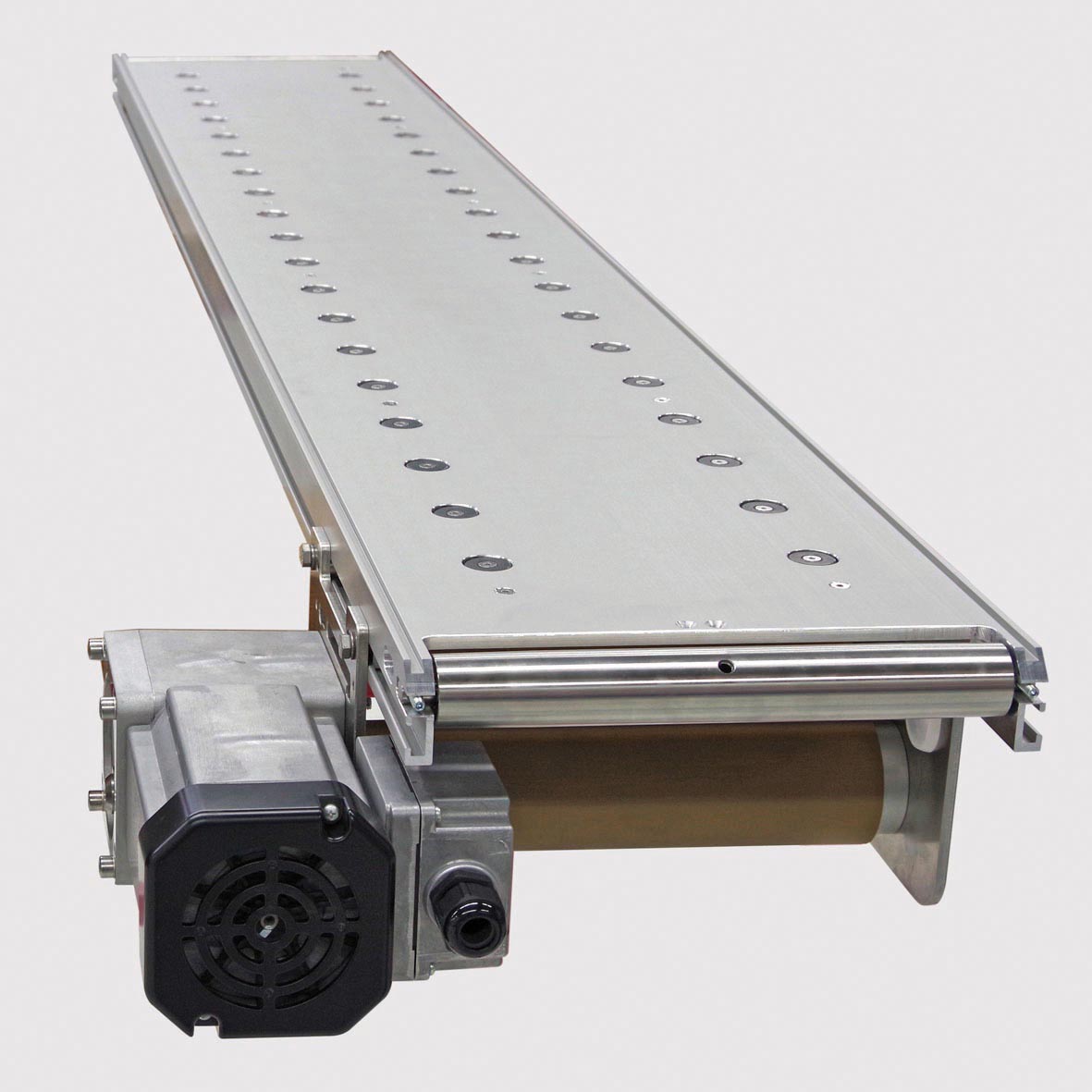

Efficiently handling large metal parts from a punching machine, this magnetic belt conveyor ensures precise transportation to the next processing step. The conveyor accommodates parts with widths exceeding the chassis dimensions, as no side guides are attached. The powerful magnets securely hold the stamped parts on the belt with millimeter accuracy.
For precise transfer, the conveyor utilizes small circulating rollers (Ø 1.18 in / Ø 30 mm) and incorporates a chamfer at the chassis outlet. Positioned beneath the chassis (6 mm) on an adapter profile, the 0.39-inch (10 mm) high round magnets optimize the system's functionality.
