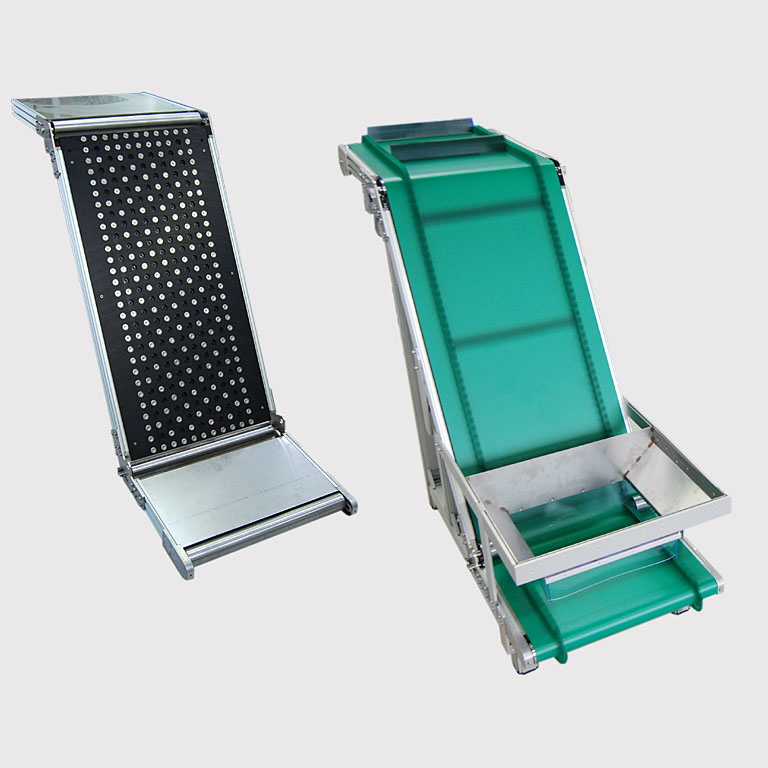

Z-shaped belt conveyor with elevation

When you need to transport steel parts to a higher elevation, Z-shaped conveyors may be the answer. The system is comprised of two horizontal and one incline conveyor, which are configured with a 60° slope and accommodate height differences of about 39.37 in (1 meter).

The chassis features embedded magnets in the riser to secure the metal parts to the belt as they move upward.
