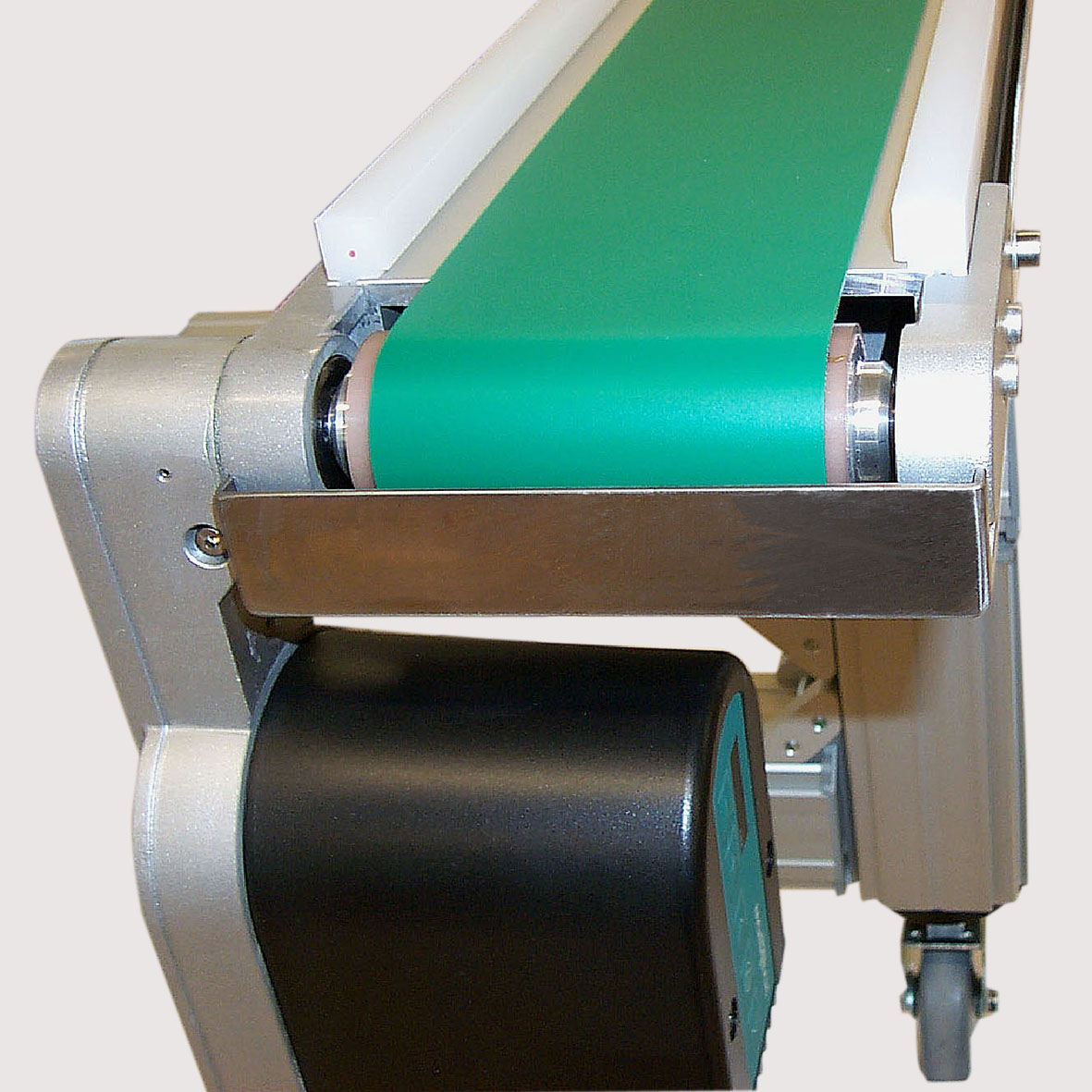

Mobile belt conveyor with Drip Pan

Conveyor System

The KTB Minidrive conveyor is mounted to a mobile chassis equipped with four casters. Powered by an end drive, the KTB-140 transports small parts from a machining tool to a point further along in the production process. Oily residue from the machined parts is collected in a drip pan mounted below the belt.

Find more general solutions here.

Technical Data

Type of conveyor	KTB-140 Minidrive Conveyor
Drive	End drive, brushless DC-motor
Max. transport weight	11 lb (5 kg) buffering mode
Speed	1.31-24.93 ft/min (0.4 – 7.6 m/min) with integrated control
