Pivoting belt conveyor for 180° transfer

Conveyor System

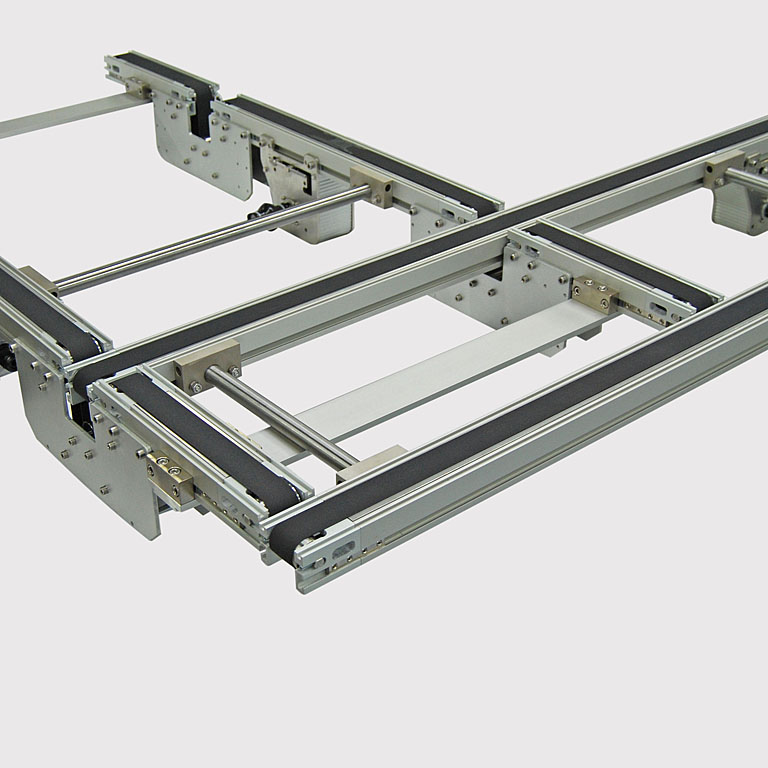

This pivoting conveyor is used to cross-transfer large, heavy products. The product is twice diverted 90° by a conveyor nested between tandem chassis, which lift and lower as required.

Find more general solutions here.

Technical Data

Type of conveyor	TTBD-60 tandem conveyor
Drive	Horizontal, with three-phase motor
Max. transport weight	114.64 lb (52 kg) buffering mode
Speed	35.76 ft/min (10.9 m/min)
