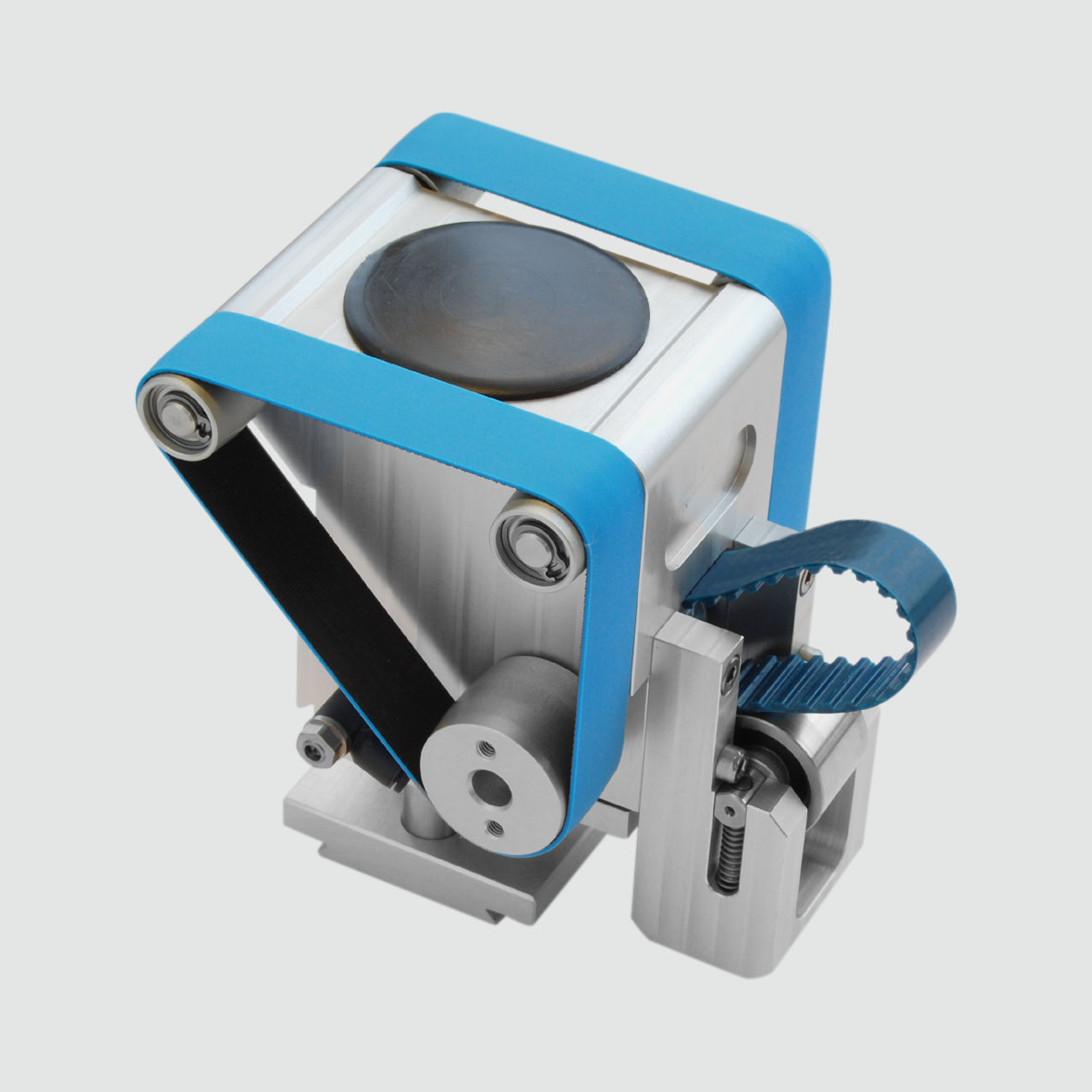

SOLTB-ASM - Discharge belt module

Conveyor System
The SOLTB-ASM pneumatically operated discharge module can remove single parts or, when configured with additional units, remove multiple parts on a production line. The discharge module can be combined with the SOLTB-G-144 feed conveyor or a SOLTB-G-104 discharge conveyor. The module’s belt is powered via a special coupling, eliminating an additional drive unit.
Technical Data
Stroke min. 0.15 in (4 mm) / max. 0.70 in (18 mm)
Travel time 0.25 seconds
Adjustment range of top stop 0.15 in (4 mm)
Adjustment range of bottom stop 0.31 in (8 mm)
Piston diameter 0.62 in (16 mm)
Piston rod diameter 0.23 in (6 mm)
